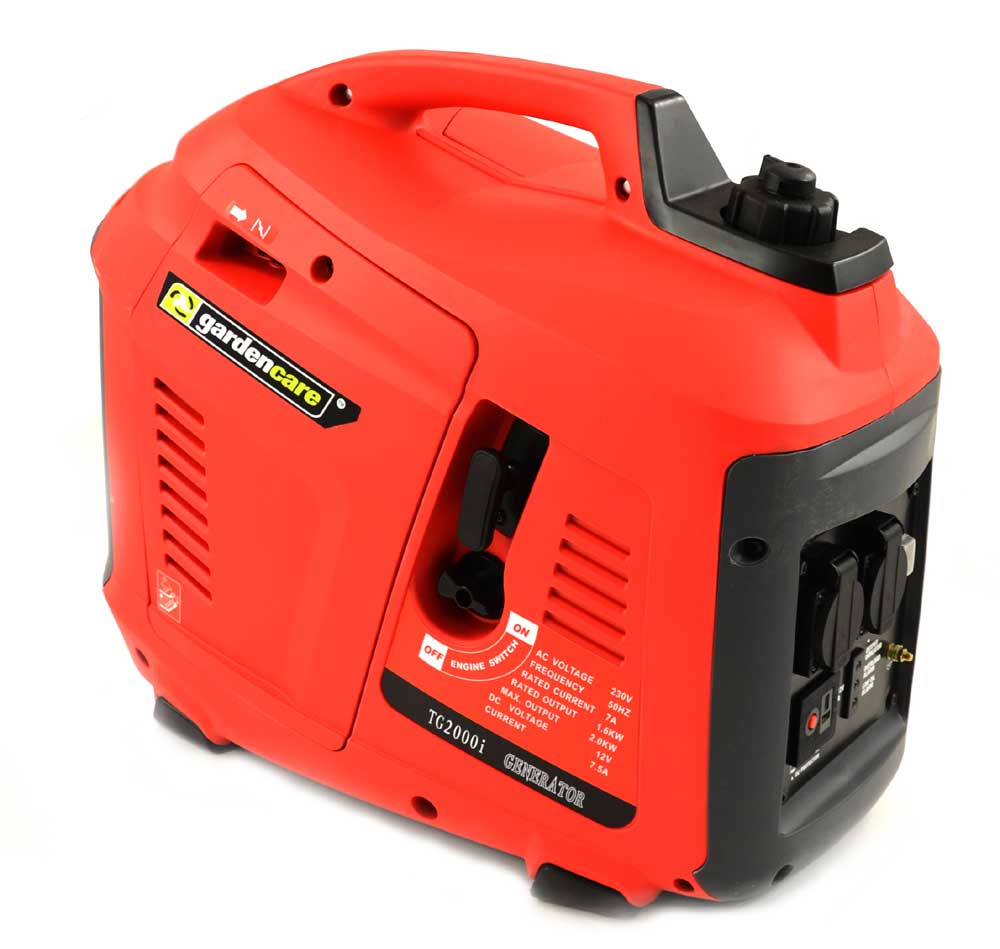

Light weight portable generator power
The Gardecare alternator is connerted directly to the engine, eliminating the flywheel as in traditional sets.This design results in a 50% reduction in weight and overall dimensions. Electric power is made available to wide range of applications.
Unique construction utillzing the latest technology
Unique cooling air intake design, smart throttle power mgnagement, sound attenuation construction and inverter style output all combine to produce reliable portable electric power.
Green power system
The Gardencare Digital Sinemaster series is among the most environmentally friendly class of generators in the marketplace.The two-tiered noise dampening system results in a 10-15 decibel reduction from traditional generator sets.The high-efficiency combustion system results in ultra-low emissions.

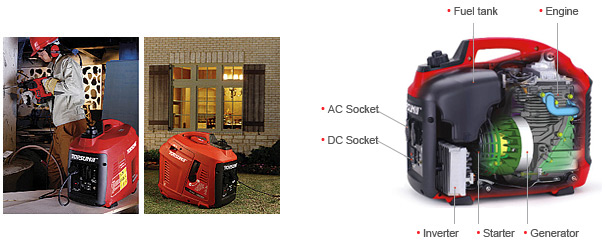

The key technology is that they adopt inverter technology. The current generate from generator will be purified by inverter and the current will be performed a transform from AC to DC, then to AC. As the result the voltage output is independent from engine speed and voltage aberration will be not more than 0.5% and sine wave is smooth.So it can be used for device sensitive to electricity, such as computer. In addition to this, it is equipped with a special throttle which adjusts engine’s spdde according to actual load at any time.So that its fuel consumption is lower than traditional gensets by 20%-40%.What’s more its long running time benefits customers more.
Rated frequency(HZ) 50 60
Rated voltage(V) 230/240 120
Rated current(A) 6.7/7 13.3
Rated speed(r/min) 4500 (r/min)
Rated output(KVA) 1.6
Max.output(KVA) 2.0
D output 12V-7.5A
Phase number Single
Current circuit breaker Without
Structural type Portable
Fuel capacity(L) 3.5
Continuous running time(hr)(rated output) 3.5
Noise level(zero load-full)DB(A)7m 54-59
Overall dimension (L X W X H)(mm) 530X300X445
Net weight (kg) 22 kg
Starting system Recoil starter
Fuel type Automotive unlead gasoline
Lube oil type CD grade or SAE10W30 ,15W40
Engine model 158F
Engine type Single cylinder,4-stroke,OHC,gasoline engine
Bore X stroke 58X40
Displacement(ml) 105.7
Compression ratio 8.5
Rated power[KW(Hp)/(r.min)] 2.2/4500
Ignition system T.C.I
Lowest fuel consumption (G/k W.h) 420
