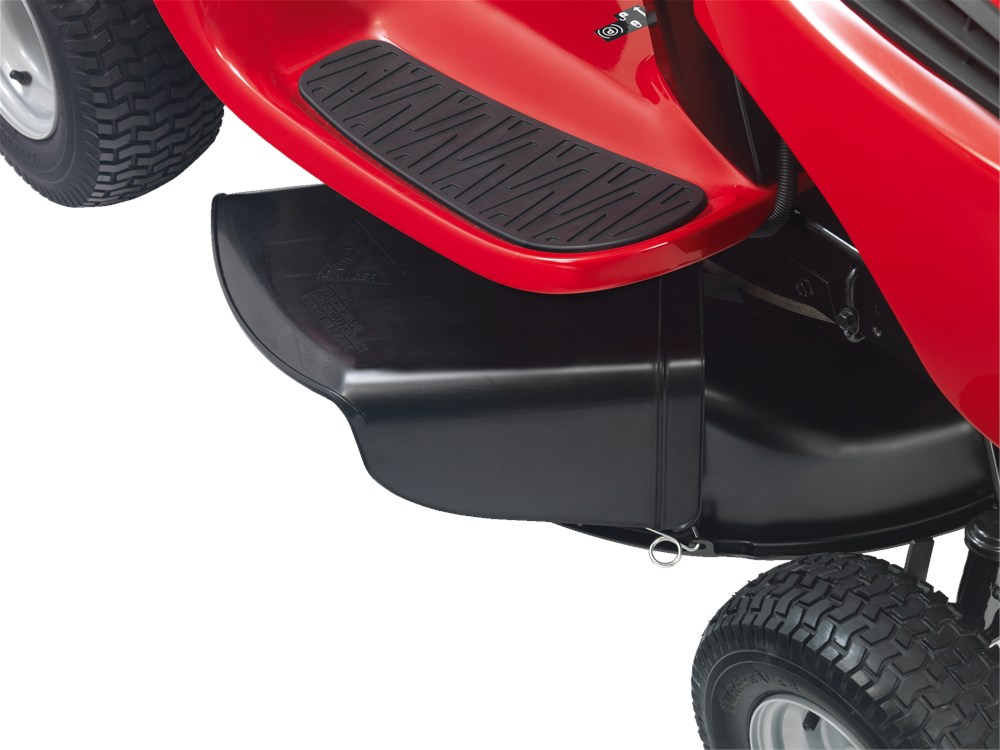

Side ejection cutting deck
Robust side ejection cutting deck for quick and efficient mowing.

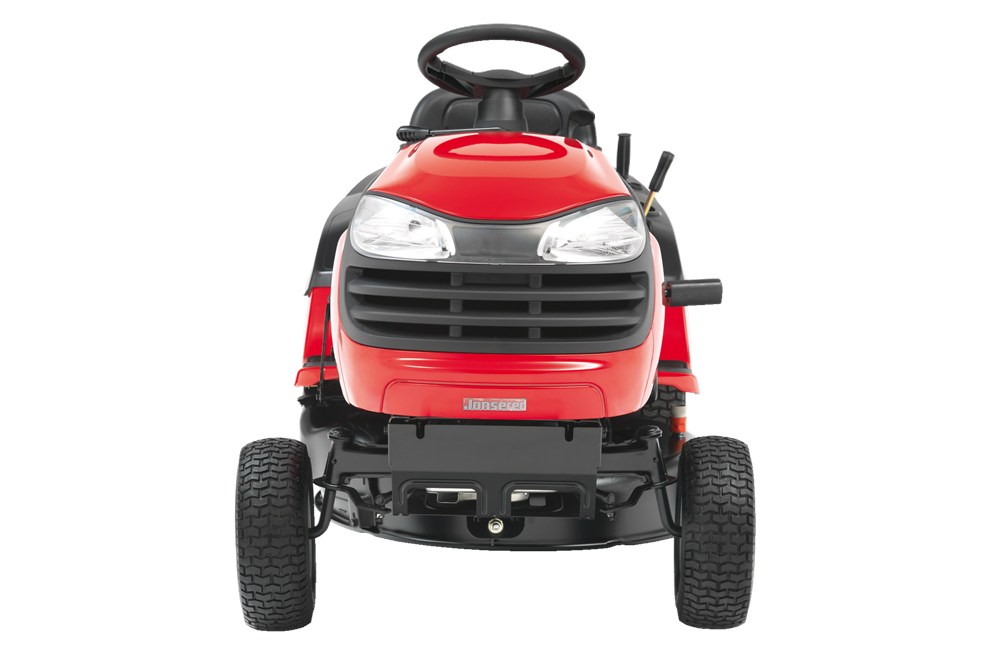

Compact design
The compact design makes it easy to manoeuvre the mower in smaller spaces. Also requires less space for storage.
Step-through chassis
The step-through chassis design makes the tractor easy to climb on and off.

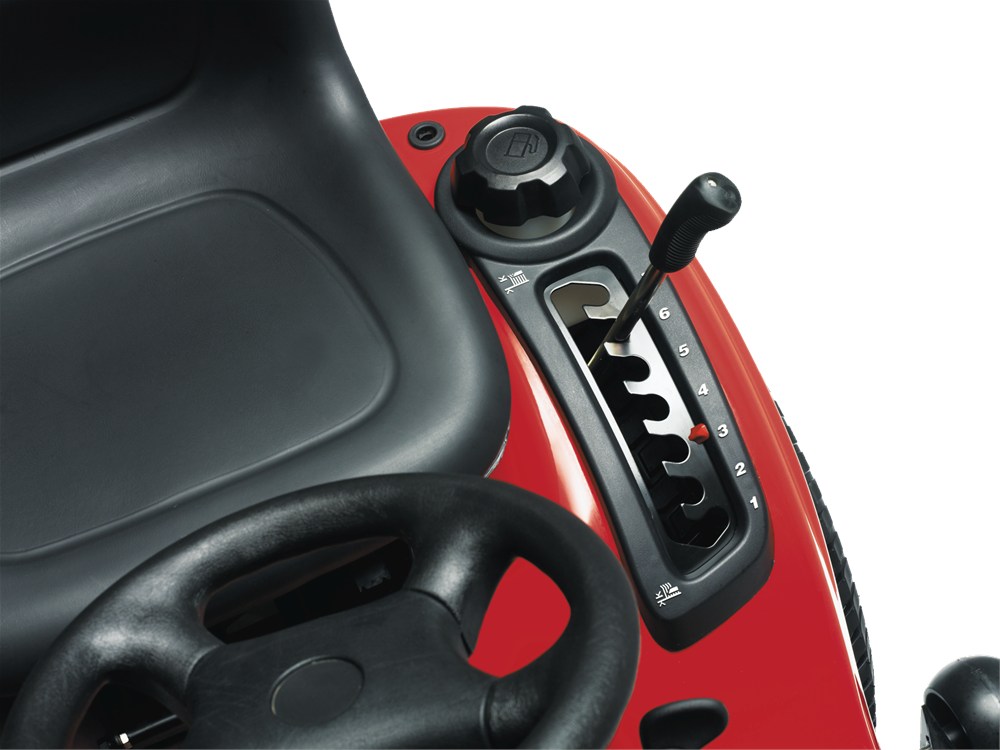

Easy-access cutting height adjustment
Cutting height adjustment is easily managed from the driver’s seat. The cutting deck is also spring-assisted, which further enhances your comfort.

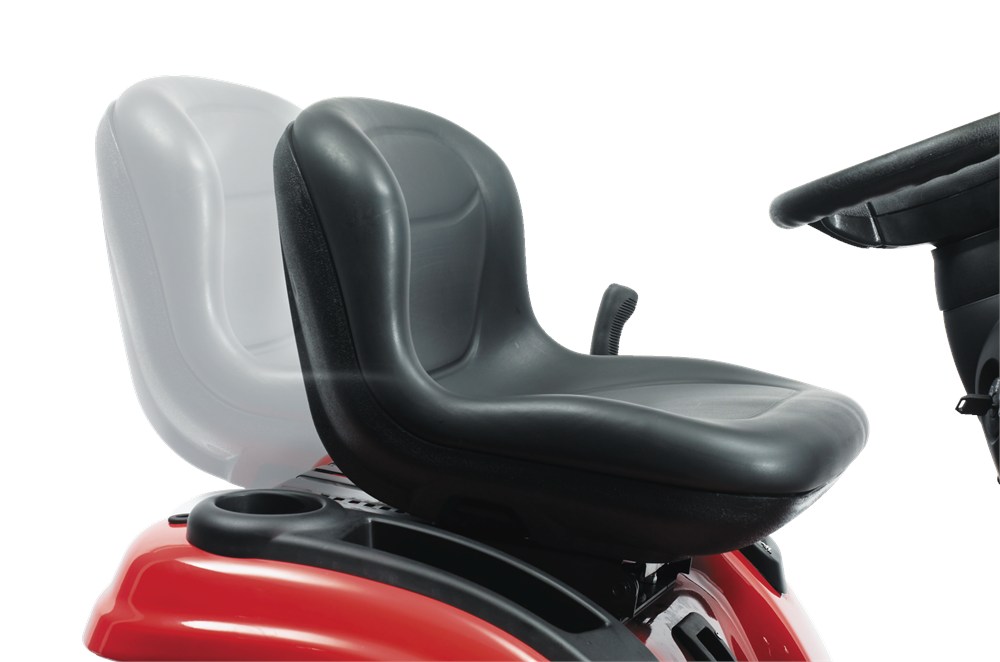

Adjustable seat
The seat is easily adjustable while seated. It slides forward/down and backwards/up.
Warranty
2 Year Domestic Warranty
Mulching grass saves so much time and can make mowing the lawn more than 30% quicker as there is no need to keep going to the tip to empty clippings. You may well ask “Will I see the mulched grass?” and the answer is “No!” Mulched clippings are blown down into the turf and are not noticeable provided the grass is cut regularly and not on the lowest setting. Some owners prefer to collect grass cuttings on areas close to the house to be certain that children or pets don’t carry them inside and then use the mulching facility on all the other areas.Switching between collection or mulch modes is extremely simple and takes less than a minute. To mulch just remove the collector, insert the mulching plug into the discharge chute and replace the collector. To return to collection, simply reverse the procedure.Mulching the grass allows the clippings to be recycled, improving the soil as they decompose forming a natural fertiliser high in potash and nitrogen.
Engine Engine manufacturer Briggs & Stratton
Engine name PowerBuilt AVS
Net power at preset rpm 6.4 kW @ 2800 rpm
Cylinder displacement 344 cm³ / 21 cu.inch
Cylinders 1
Battery 12 V 20 Ah
Fuel Type Gasoline
Fuel tank volume 5.7 lit / 1.5 gal.
Engine lubrication type Splash
Drive system Transmission type Manual
Drive method Lever-operated
Speed forward, min-max 0-7.2 km/h / 0-4.5 mph
Speed reverse 2.6 km/h / 1.6 mph
Gears, forward/reverse 6/1
Cutting deck Cutting width 77 cm / 30 inch
Cutting deck type Stamped
Cutting deck material Steel
Cutting methods Side discharge
Cutting height, min-max 20 - 80 mm / 0.8 - 3.2 inch
Cutting height adjustment Notch
Cutting height steps 6
Cutting height adjuster Fender-mounted
Blade engagement Manual
Blades 1
Other Seat back height Medium
Seat material Vinyl
Steering wheel type Comfort
Step-through chassis
Deflector Included
Mulch kit/plate Available as accessory
Dimensions Tyre size, front 13x5-6"
Tyre size, rear 16x6.5-8"
Turning radius, min 41 cm / 16.1 "
Base machine, length 172 cm / 67.7 inch
Base machine, width (chute down) 92 cm / 36.2 inch
Base machine, height 101 cm / 39.8 inch
Weight 172 kg / 379.2
Warranty 2 Years
