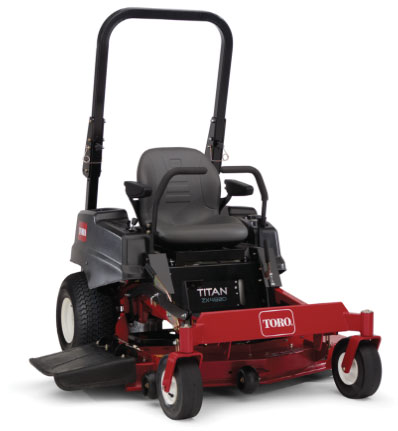

Toro Titan ZX5420 Zero Turn Ride on Lawnmower

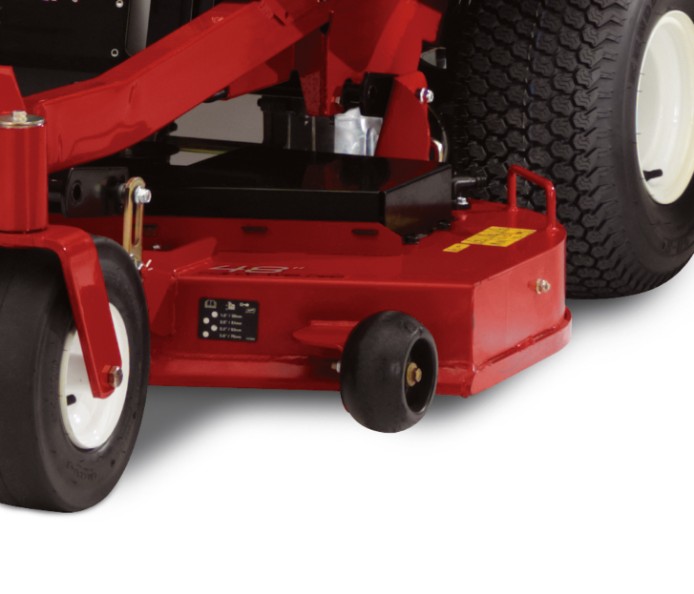

54" (137.2 cm) Fabricated Deck
For an aggressive deck built to handle tough cutting conditions yet provide a truly superior quality of cut, Toro’s 4.5" (11.4 cm) deep, fully welded, fabricated deck is up to the challenge. The leading edge of the deck is reinforced with a Toro "Bull-Nose" commercial style bumper. Three anti-scalp wheels in front and two anti-scalp skids in the back help the deck float over rough terrain. Create your own natural fertiliser by adding a Recycling Kit or make garden clean-up a snap with an optional Twin Bagging system.

24 hp (17.9 kW) Kawasaki Engine
The Kawasaki engines deliver smooth power output, quieter operation, outstanding durability and are designed to handle even the most challenging conditions. They include heavy duty features such as cast iron cylinder liners, high performance pressurized lubrication, electronic spark ignition, automatic compression release, internally vented carburetor with fuel shut-off solenoid, and rotating grass screen.

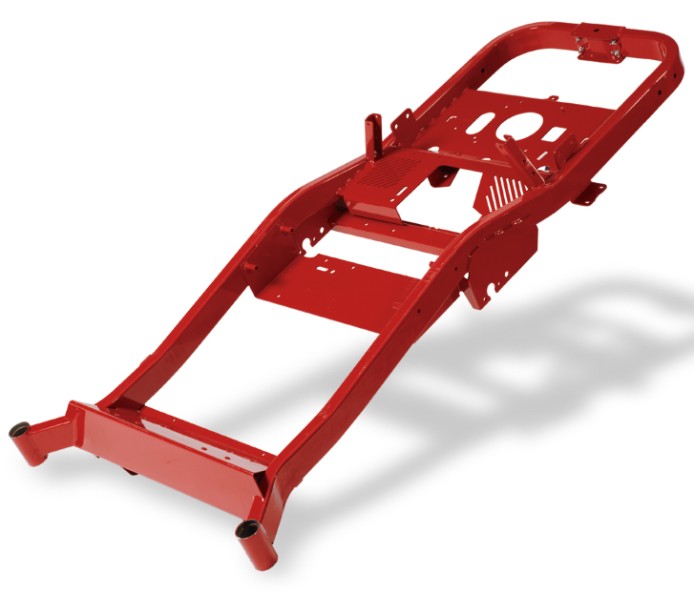

Fully Tubular Frame
A 1.5" X 3.0" (3.8 cm x 7.6 cm) fully tubular frame forms the rock solid foundation for the rest of the mower. The large continous frame tubes have seamless sides with no welded joints which provides maximum strength.

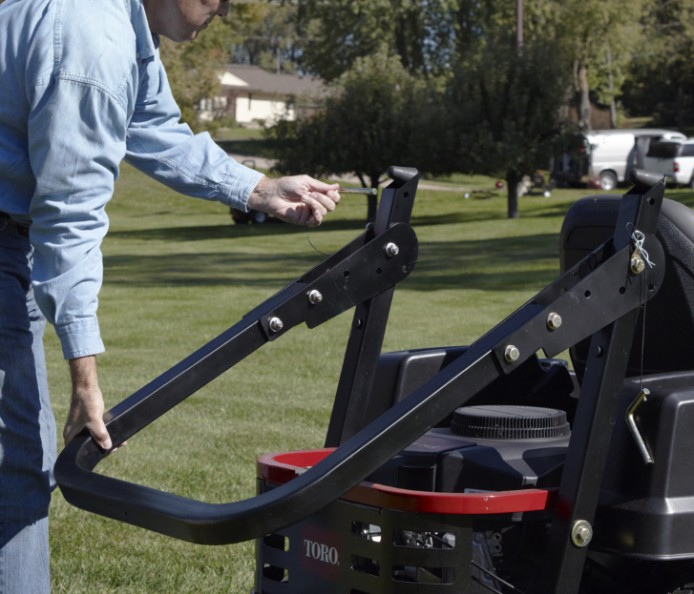

Folding ROPS
Folding Roll Over Protection System (ROPS) comes standard. The folding design folds easily with the help of quick-release pins. It tucks under the frame for compact storage or when mowing under low obstacles on flat ground.

3-Year/240 Hour Limited Warranty*
The new TITAN Z is warranted against defects in materials and workmanship for three years or 240 hours.

Contoured 18" (45.7 cm) Extra Tall w/ Slide
The premium seating system on the TITAN is truly a leader in comfort. The extra thick seat foam is contoured to envelope the operator in comfort and help hold you in place when traversing rough terrain. The seat is further cushioned by a unique adjustable seat spring suspension allowing you to have anywhere from 2 to 5 springs underneath the seat to give you customised support. A four-inch (10.2 cm) seat slide is adjustable while seated to help give you just the right fit. Adjustable armrests and retractable seat belt come standard.

Hydro Gear ZT2800 Hydrostatic Drive System
The new ZT2800 hydrostatic transmission has a higher load capacity than the previous design; an internal, maintenance-free brake; a guarded, spin-on filter and significantly easier to maintain versus a wheel pump and motor system. Plus, the ZT2800 also has fewer leak points by design so homeowners can be confident their machine’s drive system is virtually bullet proof.

20" X 10" (50.8 cm x 25.4 cm) Rear Tyres
These large, wide tyres provide a smoother ride over rough terrain than smaller diameter tyres. The width helps reduce turf compaction. The special tread provides the right mix of traction and reduced turf tear.

Foot Operated HOC
This system allows you to quickly raise and lower the deck while mowing without taking your hands off of the controls. The HOC has a range from 1.5" - 4.5" (3.8 cm - 11.4 cm) with 13 positions in quarter inch increments making sure there is a setting just right for you and your lawn.

Removable Floor Pan
Removal of the floor pan allows you easy access to the top of the deck for cleaning off grass clippings. The floor pan is also pierced to give it a textured grip and natural drain holes.

Rubber Discharge Chute
High performance rubber discharge chute allows for close trimming without damaging chute or landscape structures. Patented design provides exceptional clipping dispersion.

Engine Guard
This guard protects the engine on the sides and rear from objects that might damage your engine.

Engine Kawasaki® Twin 17.9 kW (24 hp**)
Fuel Capacity 4.3 gal (18.9 l)
Mowing Speed 7.5 mph (12.1 kph)
Anti-Scalp Wheels 3
Armrests Standard
Clutch Electric PTO
Deck Design 10 g Fabricated 48" (122 cm) triple blade deck with wash out port
Foot Operated
Height of Cut Standard
Height 42" (107.2 cm)
Height of Cut 15" - 45" (3.8 cm - 11.4 cm)
Length 73" (185.7 cm)
Recycler® Kit Standard
ROPS Folding, Standard
Seat Contoured 46cm, Adjustable Springs Seat Suspension
Spindle Housing 1" (2.54 cm) Shaft
Steering Controls Adjustable, Wrap-Around Levers with Hydraulic Dampers for Steering
Tyres Rear 20" x 10" (51 x 25 cm), Front 11" x 4" (28 x 10 cm) Smooth
Transmission Dual Hydrostatic with Charge Pumps Transmission
Weight 736 lb (340 kg)
Warranty 3-Year Limited
Width 64" (163.1 cm)
