Product Description

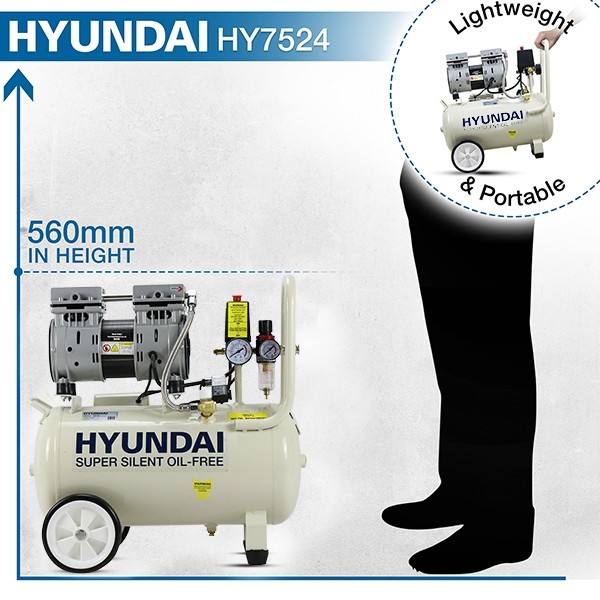

Hyundai HY7524 24 Litre Air Compressor Powerful And Compact The HY7524 is a powerful yet compact 750w direct drive oil free low noise air compressor from Hyundai.
Suitable For Various Jobs
Designed for DIY and trade applications the HY7524 silenced oil free air compressor is ideal for spray-painting, blowing away dirt and dust, nailing, inflating tyres or operating air tools.
Lightweight
Weighing only 22kg the HY7524 whisper compressor is lighter than your conventional piston type air compressor and is completely oil free, so there is no risk of oil contamination in the air supply.
Portable
The HY7524 features 2 large wheels and 2 robust rubber mounted feet and a handle for easy maneuverability.
Powered By Standard Mains Supply
Powered by a 750w motor directly connected to the oil less pump mounted on anti-vibration rubber mounts, makes it ideal for home workshop or garage use where conventional residential power sockets are available.
Maintenance Free
This maintenance free compressor uses an oil free diaphragm pump to produce a clean air supply and considerably reduce noise compared to conventional piston compressors.
24L Tank
With a 24 litre tank capacity this compressor provides an air displacement of 5.2CFM/ 150 litres per minute and a maximum pressure of 7 bar/ 100psi.
Pressure Control System
The pressure control system automatically stops and starts the motor to maintain the pressure in the air tank and comes with a twin gauge air pressure regulator.
Euro Quick Release Connectors
Fitted with Euro quick release connectors this compressor is fitted with a standard 13A UK Plug.
Compressor Care
Pressure safety valves on Hyundai air compressors have been updated in compliance with the latest CE certification standards. The pressure release pull ring has been removed from the safety valve to prevent it being misused to drain the air from the compressor tank, causing excessive wear to the valve. Air and moisture should always be released using the drain valve located on the bottom of the tank.
In The Box:
HY7524 Electric Air Compressor
User Manual
Warranty
Covered by Hyundai 2 year standard warranty.
Hyundai HY7524 24 Litre Air Compressor
Low noise air compressor.
OIL FREE - maintenance free and no oil contamination.
Hyundai 750w / 230v direct drive electric motor with UK 3-pin 13amp plug.
24 litre tank capacity provides an air displacement of 5.2CFM/ 150 litres per minute and a maximum pressure of 100psi / 7bar.
Pressure regulator with twin pressure gauges and twin quick release ‘Euro’ type air connectors and water / condensation trap.
Includes automatic cut out switch, safety valve and pressure regulator.
Full spares available to maintain your air compressor for years to come.
Covered by Hyundai 2 year warranty.
Specifications
Manufacturer Hyundai
Model HY7524
Portable or Stationary Portable
Voltage 230.00
Power Connection 3 Pin UK 13A Fused Plug
Motor Power 0.75kW / 1hp
Motor Speed 1040rpm
Oil Free Yes
Pump Type Single Stage
Tank Size 24L
Air Displacement 5.2CFM
Discharge Pressure 7BAR / 100PSI
Air Outlet Euro Quick Release
Sound Rating 60dB
Dimensions L X W X H (mm) 570X295X560
Net Weight 22.5kg
