Product Description

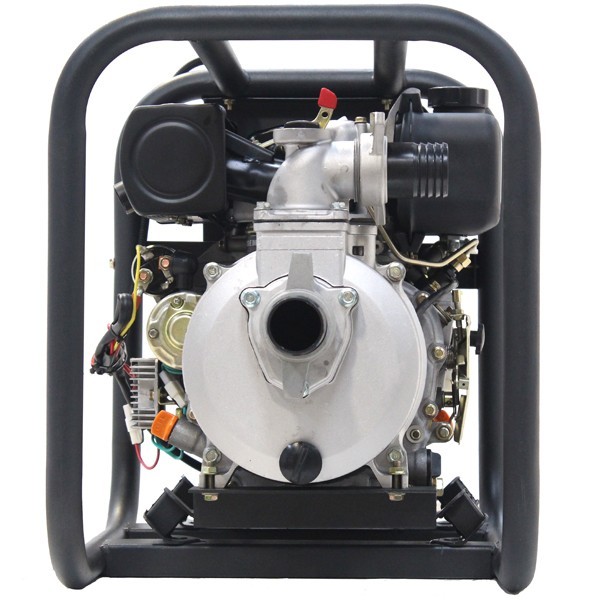

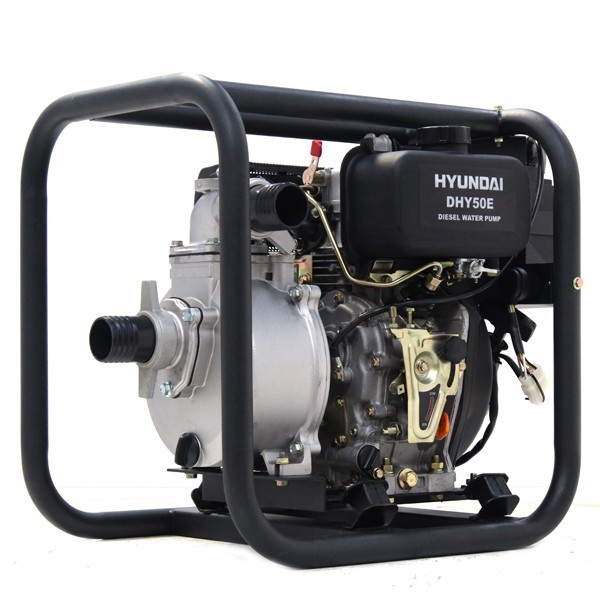

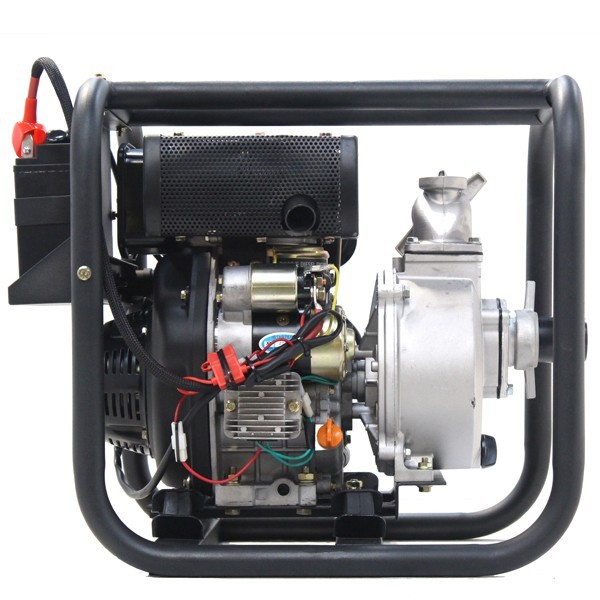

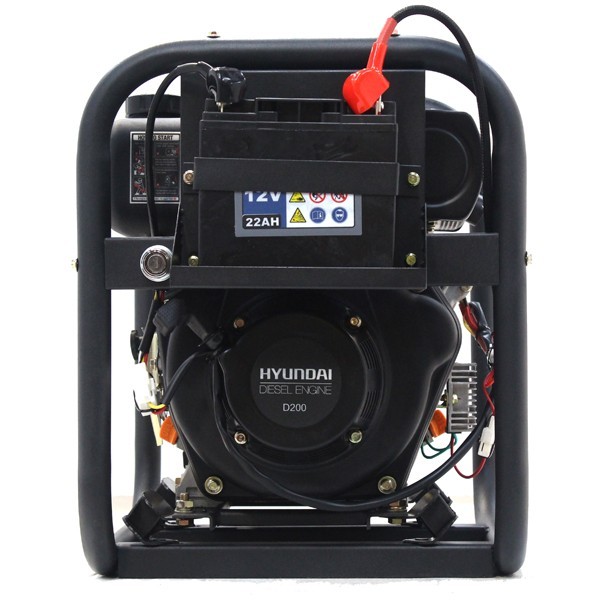

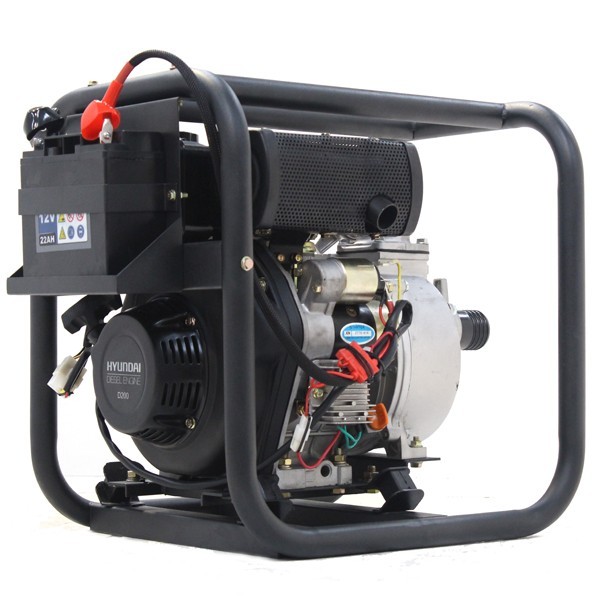

Hyundai DHY50E Diesel Water Pump The DHY50E is a powerful diesel water pump which benefits from electric start functionality for easy starting. Powered by a robust and reliable D300 296cc diesel engine, this diesel water pump is capable of pumping a huge 600 litres every minute and has a max head of 25m.
With a 2 (50mm) inlet and outlet, the DHY50E is capable of handling solids up to 9mm in diameter, which is an impressive size for freshwater pumps such as this.
Ideal for use in both domestic and professional settings, the DHY50E is designed to handle tough jobs, including being used to prevent or minimise the damage that flooding can cause. The benefit of being powered by diesel, as opposed to electric water pumps, is that this machine can be used away from a power source and minimises the risk of electrocution.
Weighing only 51kg, the DHY50E is a lightweight machine and also very portable. The solid open-frame design not only protects the water pump but also doubles up as handles, allowing for easy transportation.
Hyundai DHY50E Diesel Water Pump
A powerful and portable diesel clean water pump.

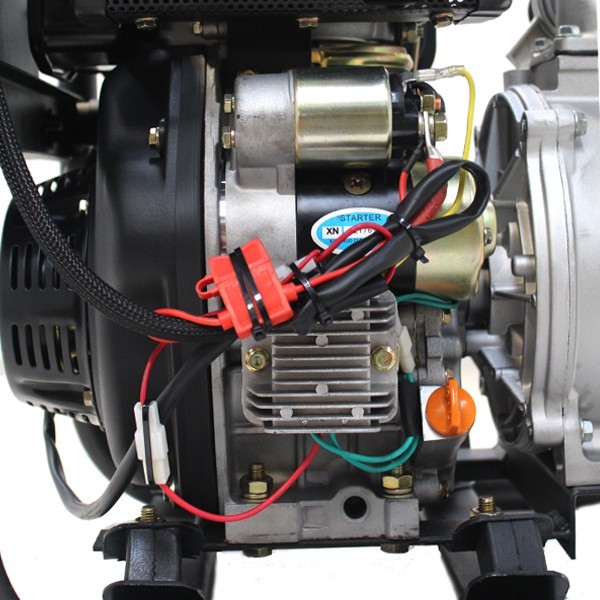

Equipped with both recoil and electric start functionality.
Powered by a D300 296cc diesel engine.
Capable of pumping 600L/min.
Can handle solids up to 9mm in diameter.
A lightweight design, weighing only 51kg.
Warranty - 12 Months
Specifications
Gross Weight (kg) 53.00
Warranty 1 Year
Engine Type Hyundai D200, 4 stroke single cylinder
Engine Size (cc) 221.00
Fuel Tank (L) 3.60
Fuel Type Diesel
Oil Capacity (L) 0.60
Noise Level (dB) 105.00
Net Installed Power @ 3000rpm (hp/kw) 3.4/2.5
Maximum Power @ 3000rpm (hp/kw) 3.8/2.8
Net Installed Power @ 3600rpm (hp/kw) 3.8/2.8
Maximum Power @ 3600rpm (hp/kw) 4.2/3.1
Drive Type Direct drive
Starting Method Recoil/Electric
Inlet (inches / mm) 2/50
Outlet (inches / mm) 2/50
Maximum Flow Rate (L/min) 600.00
Impeller Type Cast Iron
Pump Type Aluminium housing
Total Lift (m) 25.00
Suction Lift (m) 8.00
Boxed Dimensions L x W x H (mm) 550 x 460 x 550
Fully Assembled Dimensions L x W x H (mm)
STARTING METHOD Recoil/Electric
GROSS WEIGHT (KG) 164.00
INLET DIAMETER (MM) 80.00
MAX HEAD (M) 25.00
MAX SOLIDS (MM)* 9.00
OUTLET DIAMETER (MM) 80.00
*Risk of damage to the applicance.
The particle size mentioned does not refer to sand or stones but rather to soft flexible particles such as fluff and similar which the rotor cannot wedge inside the pump.
