Product Description
Hyundai HY3150S 150 Litre Air Compressor Twin Cylinder, Impressive Power The HY3150S is a powerful 3hp twin cylinder cast iron belt drive air compressor from Hyundai. Designed for professional workshops and trade applications the HY3150S air compressor is ideal for spray-painting, air tools, inflating tyres and perfect for workshops and commercial garages.
Anti-Vibration Feet
Weighing 76kg the HY3150S features 3 wheels for easy movement.
Built To Last

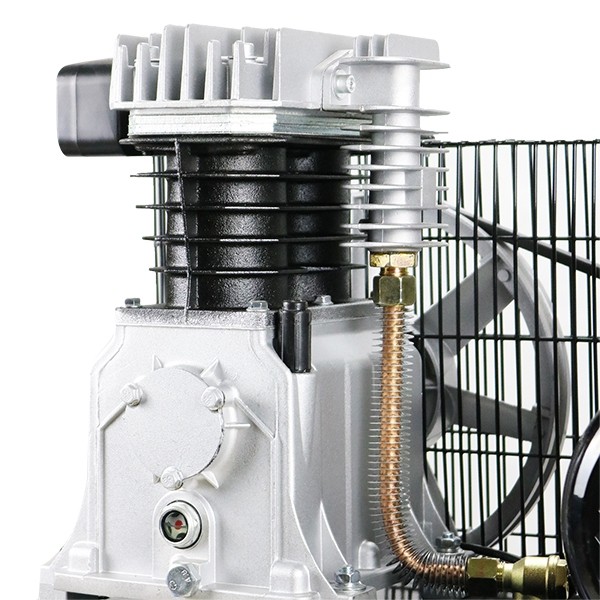

The twin cylinder slow running pump with cast iron cylinders for long life and aluminium cylinder head for improved cooling produces a maximum working pressure of 145psi or 10bar.
Can Be Powered By 13amp UK 3-Pin Plug
The 3hp electric motor can be powered by a 13amp UK 3-pin plug, making it ideal for professional workshop or home garage use where conventional power sockets are available.
Large 150L Tank
The large 150 litre tank capacity provides a constant 11cfm supply of air for air tools. Twin Euro type Q/R air outlets for increased versatility to allow two air-lines / tools to be connected at the same time.
Safety Features
The automatic pressure cut out switch provides user safety with built in safety valve and pressure regulator with twin gauges gives the user controlled variable air pressure. The gauges measure the pressure in the air tank and the air outlet pressure.
Ideal For Professional Use
This air compressor provides a fantastic combination of performance and durability ideal for professional applications in any workshop.
In The Box:
HY3150S Electric Air Compressor
Manual
Compressor pump is filled with oil ready to use
Covered by Hyundai 2 year standard warranty.
Hyundai HY3150S 150 Litre Air Compressor Twin Cylinder,
Powered by a Hyundai 2.2kW / 3hp 230v electric motor with a standard 13A UK Plug.
Twin cylinder belt drive slow running pump.
Large 150 litre tank capacity provides an air displacement of 14CFM and 10 bar maximum air pressure.
Fitted with Euro quick release connectors and twin gauge pressure control regulator.
Ideal for professional workshop and garage use.
Covered by Hyundai 2 year warranty.
Full spares available to maintain your air compressor for years to come
Covered by Hyundai 2 year warranty.
Specifications
Warranty 2 Year
Manufacturer Hyundai
Model HY3150S
Portable or Stationary Stationary
Voltage (V) 230.00
Connection Method / Cable Length (m) Hard Wired 3 Pin UK Plug
Motor Power (hp/kW) 3hp / 2.2kw
Rated Motor Speed (rpm) 2850rpm
Maximum Pressure (PSI/Bar) 145.00
Cut-Out Pressure (PSI/Bar) 10 bar
Cut-In Pressure (PSI/Bar) 8 bar
Tank Capacity (L) 150.00
Pump RPM 1050rpm
Displacement (CFM - L/min) 14 / 396
Air Outlet Twin Euro Quick Release Couplings
Drive Type Poly V Belt Drive
Pump Type Single Stage
Mounting Mounted on 4 anti-vibration rubber feet
Lubrication Oil lubricated
Overall Dimensions L x W x H (mm) 1310 x 500 x 880mm
Tank Material Cast iron
Cylinder(s) 2 cyliders
Outlets 2 outlets
Net Weight (kg) 117 kg
Noise @ 7m (dB) 75.00
