Hyundai HY40-4 4 Stroke Petrol Water Pump

Hyundai HY40-4 4 Stroke Petrol Water Pump
Hyundai HY40-4 4 Stroke Petrol Water PumpHyundai HY40-4 4 Stroke Petrol Water Pump - view 2Hyundai HY40-4 4 Stroke Petrol Water Pump - view 3Hyundai HY40-4 4 Stroke Petrol Water Pump - view 4
Hyundai HY40-4 4 Stroke Petrol Water Pump - view 5Hyundai HY40-4 4 Stroke Petrol Water Pump - view 6Hyundai HY40-4 4 Stroke Petrol Water Pump - view 7

Hyundai HY40-4 4 Stroke Petrol Water Pump

If you have seen this item cheaper on any other website then call us and we will try to match or beat if possible.

Ask a question about this item

Our Price: 149.00 (Inc Vat 20%)

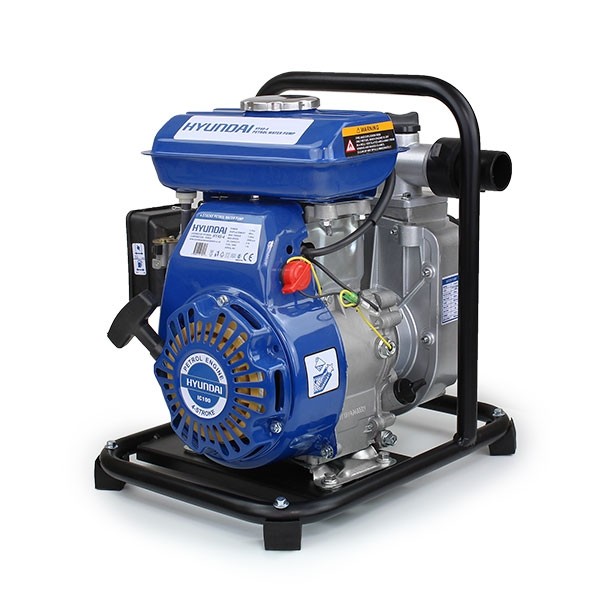

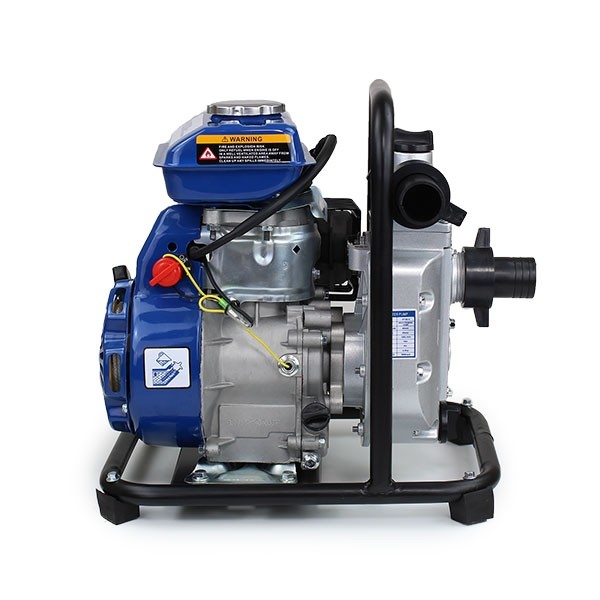

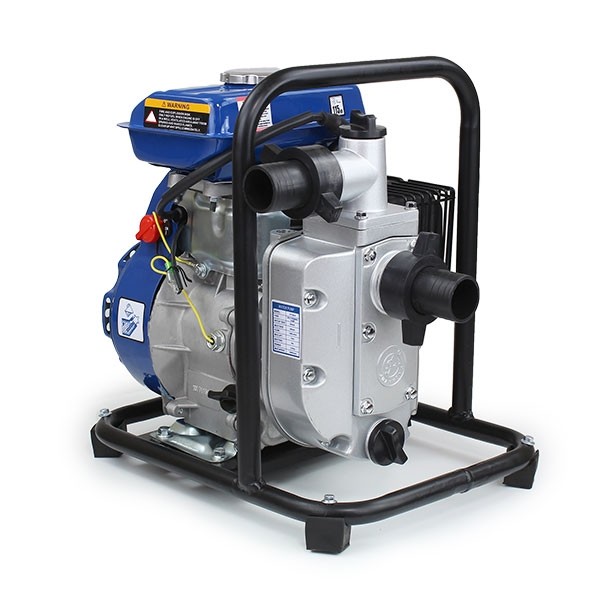

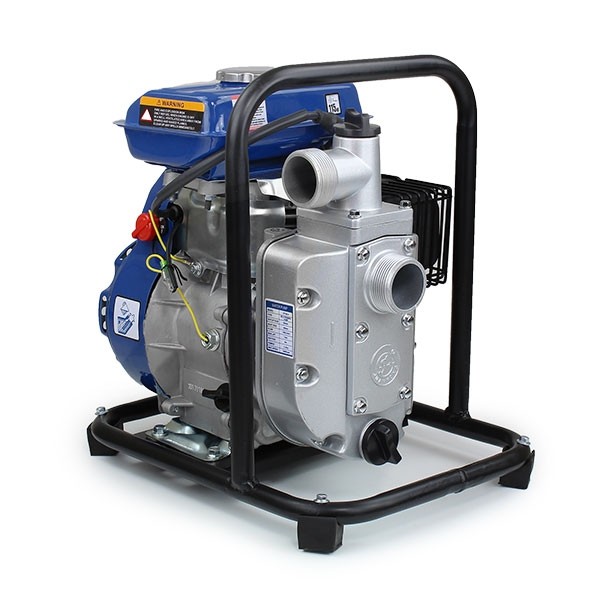

Hyundai HY40-4 4 Stroke Petrol Water Pump is one of the lightest and most portable 4-Stroke petrol water pumps on the market, weighing only 12kg it's easy to move around and store making it ideal for most domestic and professional applications such as transferring clean or fresh water from ponds, pools, hot tubs and flooded areas.

Powered by the 4-stroke easy pull start Hyundai 99cc Euro 2 petrol engine with excellent fuel consumption and exceptional performance.

The HY40-4 is built to ensure a reliable performance and capable of transferring 170L/min and has a 40mm / 1.5" inlet and outlet. The pump has a total head of 14m and a maximum suction head of 4m. Please see the diagram below explaining the different meanings of the head when used in reference to a water pump. The ‘head’ is also referred to as ‘lift’ by some manufacturers.

Housed within a rugged open frame, with a convenient carry handle, it's easy to move and store but this frame also provides protection from potential damage to the pump and engine itself.

Before using your pump, make sure you have your suction hose and lay flat hose ready. The suction hose is used between the water source you are looking to move and the pump, and is more sturdy and strengthened to stop it being ‘sucked’ flat while in use. The lay flat hose is used on the outlet of the pump and usually sits ‘flat’ - hence the name. Try to use the minimum amount of suction hose possible and place the pump as close to the water as you can.

Simply attach the strainer (the plastic ‘cage’ included with the pump), to the end of the suction hose, which prevents debris being sucked into the pump and causing damage to the impeller. Then, using the provided collars, attach the other end of the suction hose to the inlet on the pump. Use the other collar to attach your lay flat hose and run it to then are you want the water to be discharged to.

This pump is self-priming, however, in order to create a vacuum and start the lifting process you need to fill the pump housing with water. You can do this by removing the cap on the top of the pump casing and filling with fresh water, then simply follow the starting procedure in the manual to begin pumping. Ensure that there are no air leaks on the suction side, as this will prevent the pump from priming.

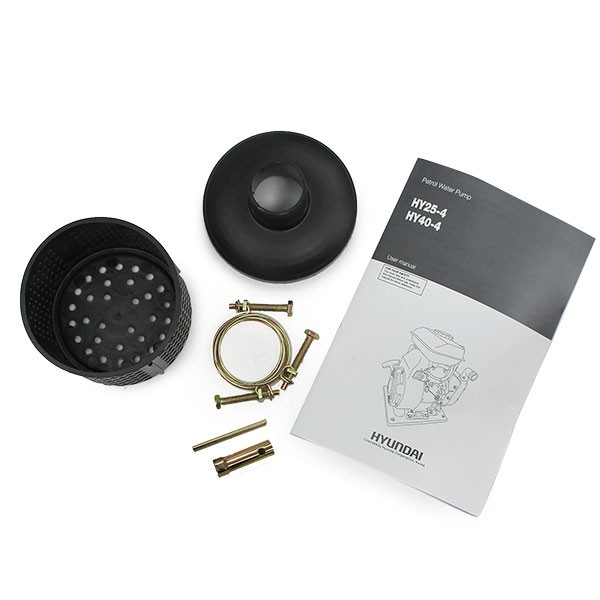

In the box: HY40-4 water pump, hose fitting kit, suction filter, manual and toolkit.

Covered by Hyundai 3 year platinum warranty.

{Features}

Hyundai HY40-4 4 Stroke Petrol Water Pump


A lightweight and portable petrol water 99pump.
Powered by a Hyundai 99cc 4-stroke petrol engine with easy recoil start and a high power to weight ratio.
Rugged outer frame and carry handle make it easily manoeuvrable.
Capable of pumping 170L/min through the 40mm (1.5”) inlet and outlet.
Suitable for transferring clean and fresh water, with a total head of 14m and a suction head of 4m.

3 Years Domestci Use Warranty



{Specifications}
ENGINE CAPACITY (CC) 99.00
ENGINE MODEL Single Cylinder, 4-Stroke, Air Cooled Petrol Engine
FUEL TYPE Petrol
DIMENSIONS (MM) (LXWXH) 380 x 310 x 390
FLOW RATE (L/MIN) 170.00
