Product Description

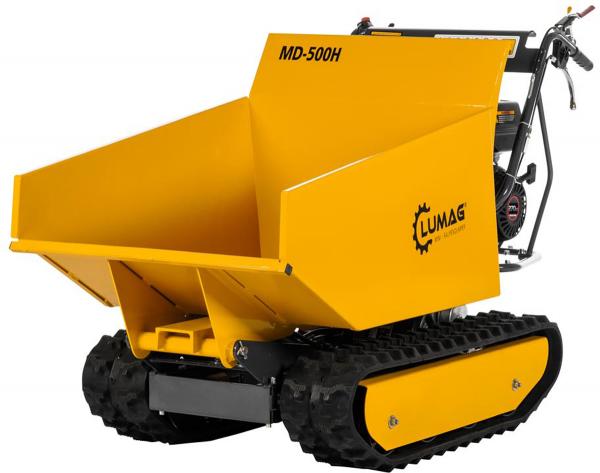

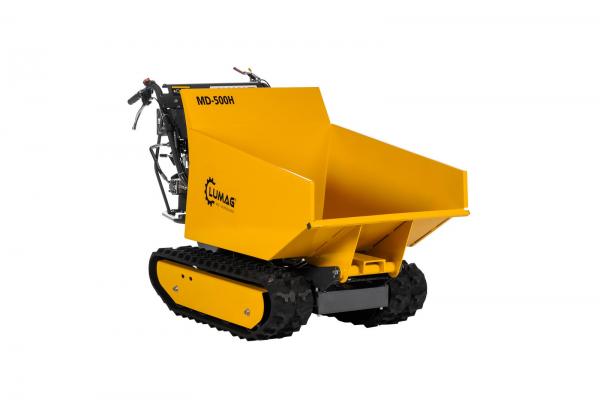

Lumag MD500H 500kg Petrol Mini Dumper Hydraulic Tip The Lumag MD500H is based on the original MD500 Chassis. The mini dumper is a handy little dumper that takes the back ache out of a huge variety of material handling tasks. Whether its moving paving stones to a patio at the end of a garden, stone walling rocks up a steep path or just logs for the fire the tipping is assisted by a hydraulic tip.

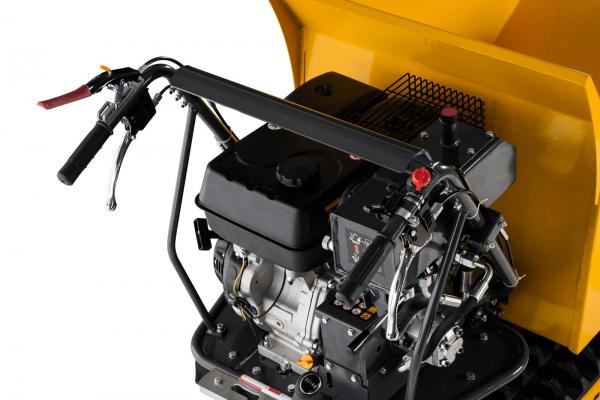

This machine is powered by an excellent Loncin engine which is easy to start and ever reliable. At only 700mm wide this machine is great even when access is limited. The MD500H has steel construction and the powerful hydraulic cylinder in combination with the simple, intuitive control make the MD-500H the ideal helper.
**MD300 style box and Plough are all available as extras.**
Lumag MD500H 500kg Petrol Mini Dumper Hydraulic Tip
engine 1-cylinder 4-stroke OHV LONCIN engine
Displacement 270 cc
power 6.0 kW
Operating speed 3,000 rpm
Starting device Reversing starter
drive Gear transmission
steering Steering brake
Tilting container (LxWxH) 1000 x 700 x 450 mm
own weight 275 kg
Load max. 500 kg
Capacity 212 l
Tilting device Hydraulic, tiltable forwards
hydraulic pump 12l / min (at 3,000 rpm)
Working pressure max. 200 bar
Working speed forwards / backwards, max. 3.6 / 1.2 km / h
Dimensions (LxWxH) 1650 x 715 x 960 mm
Warranty - 2 Years Domestic use Warranty 1 Years Commercial
