Product Description

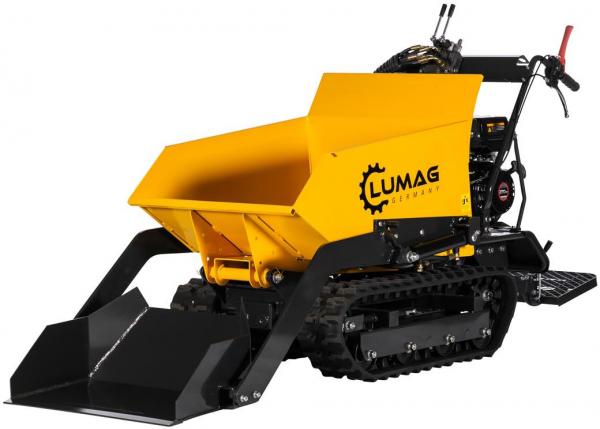

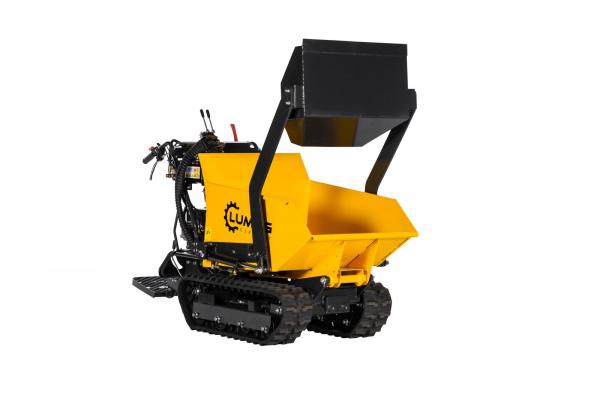

Lumag MD500H Pro 500kg Petrol Mini Dumper Hydraulic Tip with Shovel The Lumag MD500H Pro is based on the original MD500H Chassis. The mini dumper is a handy little dumper that takes the back ache out of a huge variety of material handling tasks. Whether it’s moving paving stones to a patio at the end of a garden, stone walling rocks up a steep path or just logs for the fire the tipping is assisted by a hydraulic tip. The new Pro model now has a innovative Japanese gearbox making a huge difference in usability and efficiency. The chassis has been further improved increasing ground clearance and off road ability.
This machine is powered by an excellent Loncin engine which is easy to start and ever reliable. At only 820mm wide this machine is great even when access is limited. The MD500H Pro has steel construction and the powerful hydraulic cylinder in combination with the simple, intuitive control make the MD-500H Pro S the ideal helper. The dumber has a standing platform for fatigue-free work and a shovel meaniong it can be used for a variety of environments.
Lumag MD500H Pro 500kg Petrol Mini Dumper Hydraulic Tip with Shovel
engine 1-cylinder 4-stroke OHV LONCIN engine
Displacement 270 cc
power 6.0 kW
Operating speed 3,000 rpm
Starting device Reversing starter
drive Gear transmission
steering Steering brake
Tilting device Hydraulic, tiltable forwards
Tilting container (LxWxH) 950 x 660 x 370 mm
Shovel (LxWxH) 350 x 660 x 200 mm
Dead weight / shipping weight 345 kg
Ground clearance 105 mm
Load max. 500 kg
Capacity 212 l
hydraulic pump 12l / min (at 3,000 rpm)
Working pressure max. 200 bar
transmission 6 forward / 2 reverse gears
Dimensions (LxWxH) 2260 x 820 x 1220 mm
Warranty - 2 Years Domestic use Warranty 1 Years Commercial
