Product Description

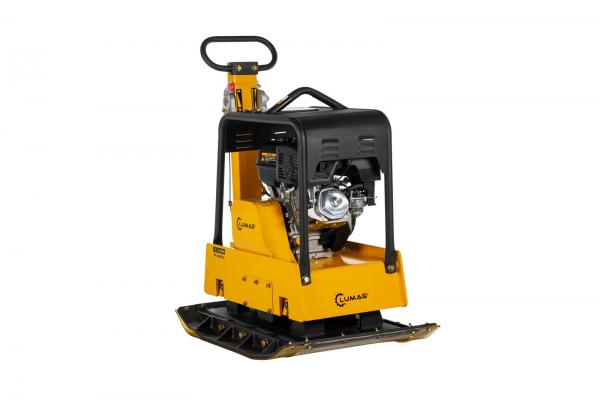

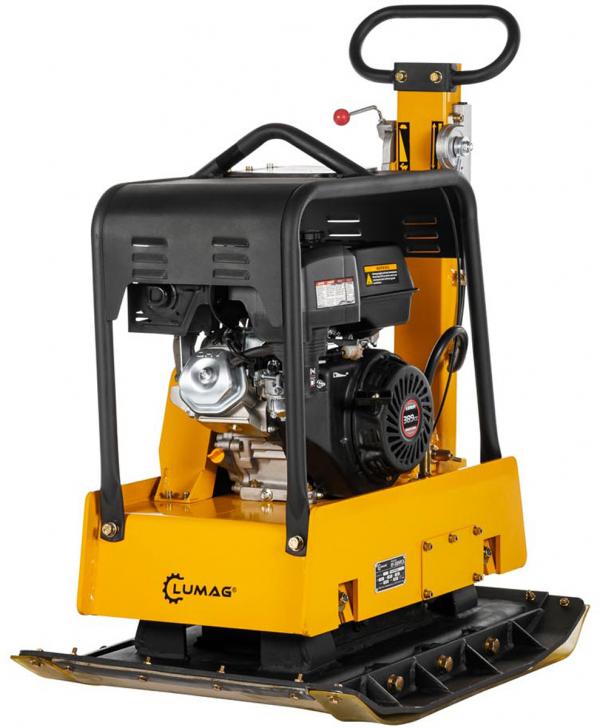

Lumag RP300HPCA Petrol Compactor Plate 38KN 19in 262KG with Reverse The Lumag RP300HPCA Compactor plate at 262kg in weight and 19" wide is versatile due to it size and forward and reverse function. The Lumag vibration plate with forward and reverse is the ideal tool for consolidating the subsoil and for vibrating in small to medium-sized areas.

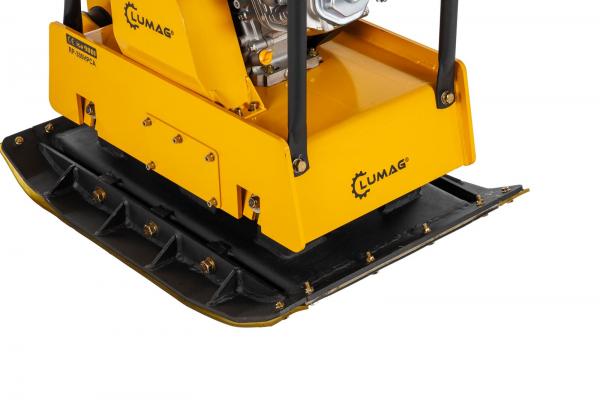

The transport wheels allow easy transportation. Whilst the rubber mat when used correctly on the RP300HPCA will protect the block paves you are working on. The RP300HPCA is powered by the Loncin 389cc petrol engine. The Lumag RP300HPCA has a protective steel frame designed both to protect the engine and provide the safe lifting point for moving the compactor plate. RP300HPCA has two base plates can be used depending on applicication.
The RP300HPCA comes with a 2 year business warranty and 5 years for domestic use.
As with all our petrol compactor plates, we offer 2-year business warranty and 5 years for domestic use.
Wheel Kit and Paving Pad are Included Extras
Lumag RP300HPCA Petrol Compactor Plate 38KN 19in 262KG with Reverse
Motor / drive 1-cylinder 4-stroke OHV engine
Displacement 389 cc
Engine power 8.2 kW at 3,600 rpm
Fuel content 6.5 l
Plate size (LxW) 840 x 480 mm
Extension plates (LxW) 840 x 80 mm
frequency 80 Hz
Centrifugal force 38 kN
Area performance 650 m² / hour
Max. Feed 18 m / min.
Vibration shocks 4,810 vpm
Compaction depth 90 cm
Max. Permissible inclination of the motor 20 °
Sound power level LWA 108 dB (A)
Operating weight 262 kg
Transport weight (net / gross) 268/281 kg
Packaging dimensions including pallet base (LxWxH) 905 x 505 x 1130 mm
Packaging dimensions cardboard box (LxWxH) 905 x 505 x 1030 mm
