Product Description

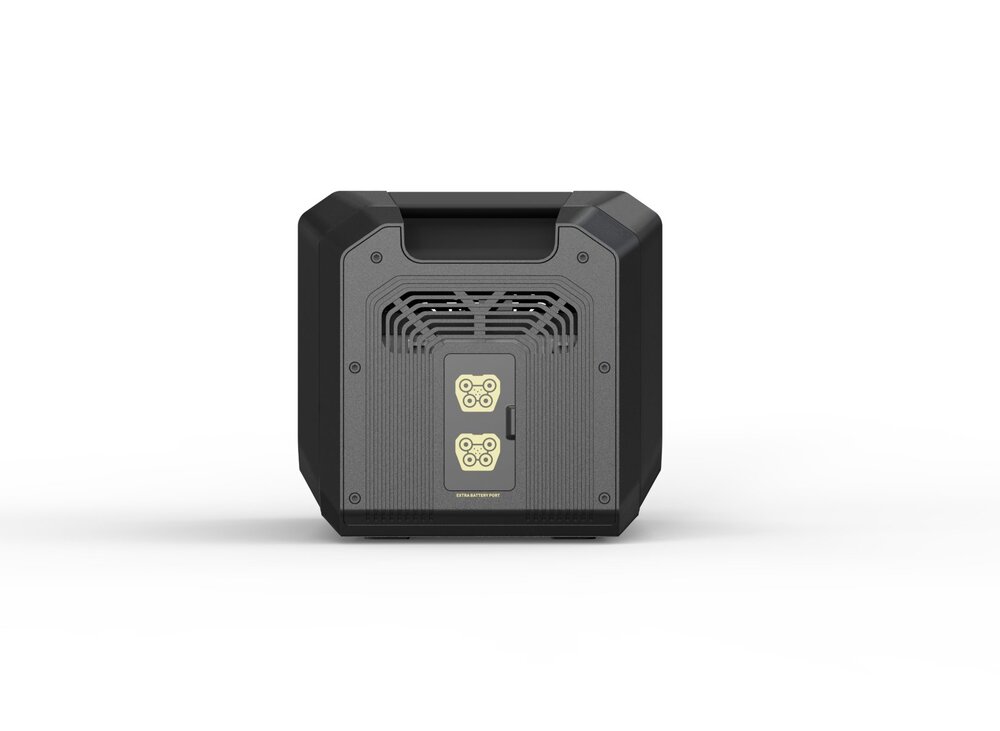

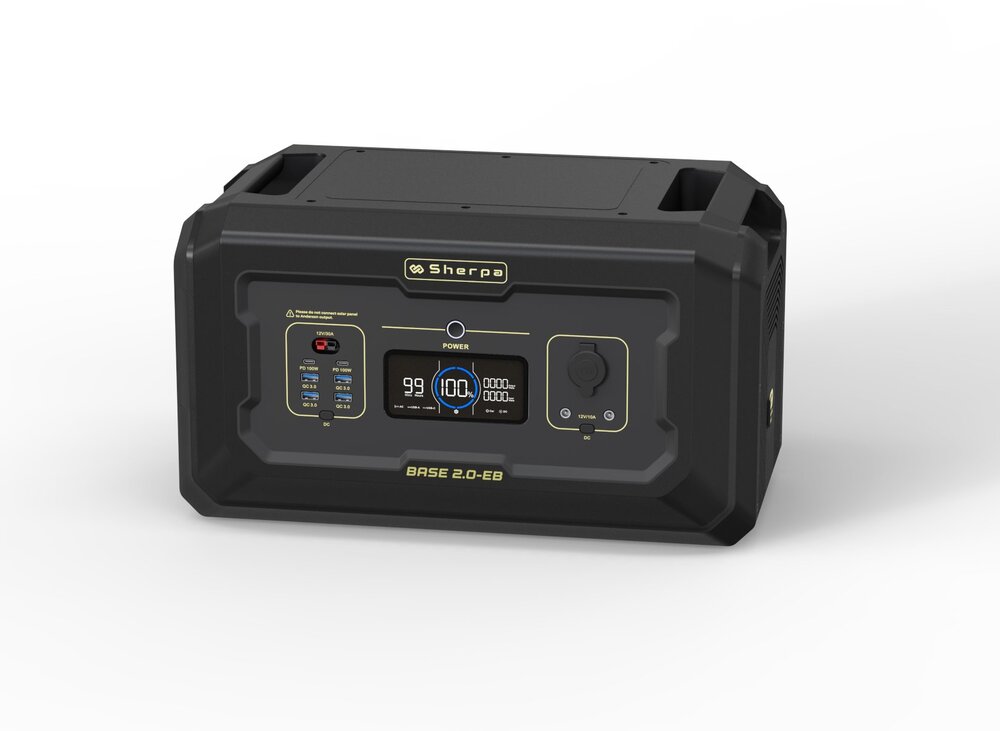

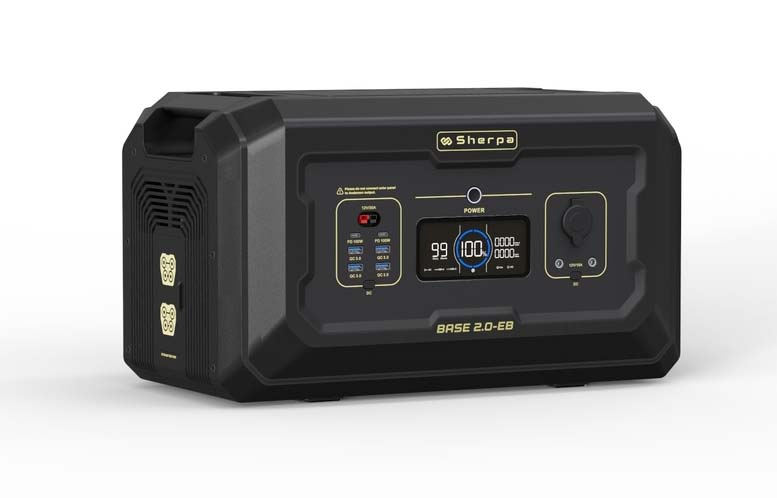

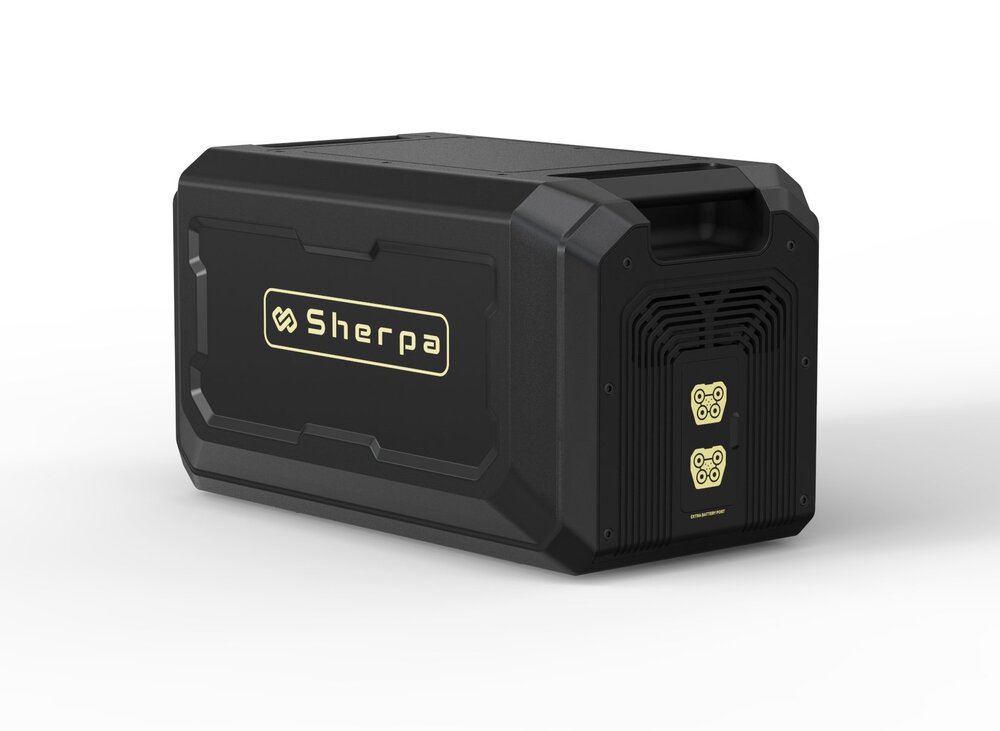

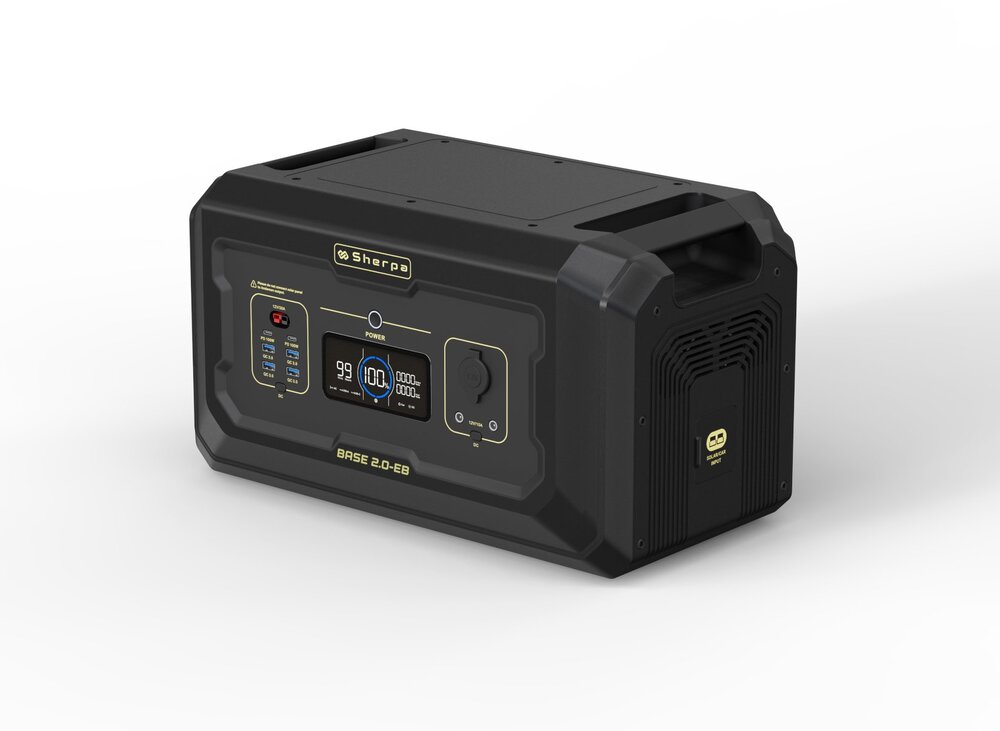

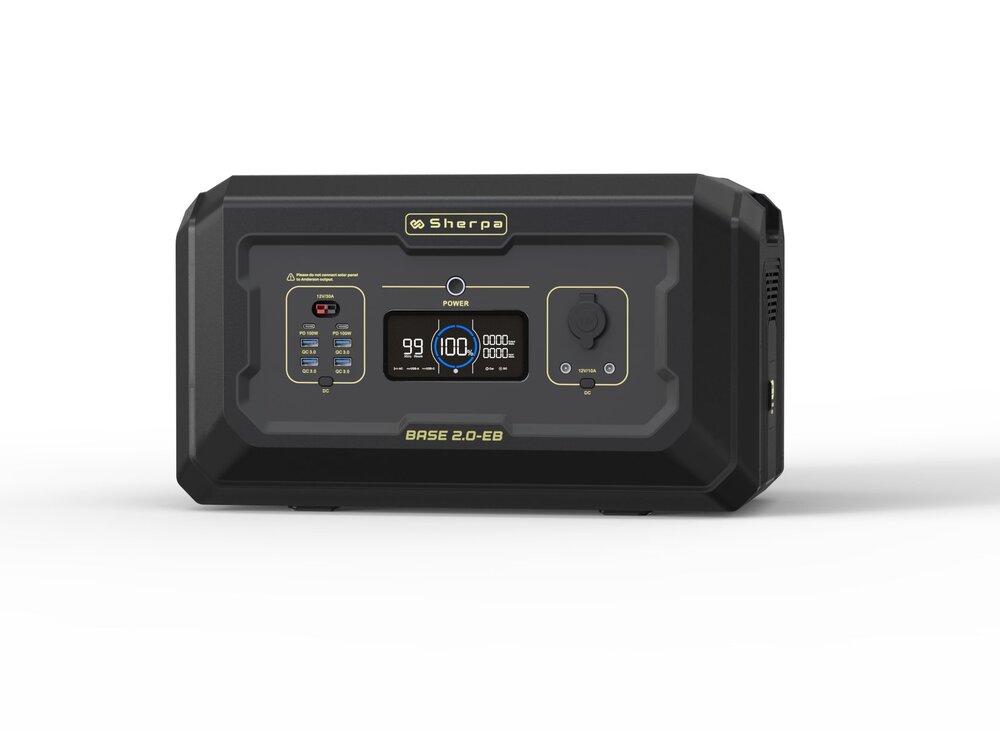

Sherpa BASE 2.0 Extra Battery 2048Wh The Sherpa Base Extra battery is designed to add energy storage capacity to your system. The Sherpa Base can link up to 15 extra battery for a really impressive energy storage. The BASE 2.0-EB has an IP rating of 21 and built with fireproof materials. The BASE 2.0-EB has a standard 5-year Warranty for peace of mind and 10-plus years lifespan. BASE 2.0-EB Battery Management System (BMS) has multiple in-built protection features, to safeguard both the Extra Battery and your connected devices from overheating, overload, and short-circuit. These limit excessive power draw, overcharge and deep discharge to preserve the longevity of the battery.
What is in the box
1 x BASE 2.0-EB
1 x Link Cable
User Manual
Specifications
Sherpa BASE 2.0 Extra Battery 2048Wh
Battery Info
Capacity: 2048 Wh (Depth Of Discharge 85%)
Chemistry: LiFePO4 (Lithium Iron Phosphate)
Life Cycles: 3,500+ Cycles to 80% Original Capacity
Shelf-life: Discharge the battery to 30% every three months and recharge it to 60%
Management System:MPPT Controller, BMS
Protection: Over-voltage, Low-voltage, Overheat, Overload
Discharging Temperature:-20°C~45°C/-4°F~113°F
Charging Temperature: 0°C~45°C/32°F~113°F
Storage Temperature:20-30°C/68°F~86°F
DC Output
Outlets: USB-A Port: 4 x (5V,9V,12V, Max 18W) Shared
USB-C Port: 2 x (5V,9V,12V,20V, Max 18W and 100W) Shared
DC 5525 Output Port: 2 x (12V-5A)
DC Anderson Output Port: 1 x DC 12V-30A
Aux Car Port: 1 x DC 12V-10A
AC Input
AC Input Power: 700W Max when charging via the BASE 2.5 host
DC Input
DC Input Power: 2100W Max

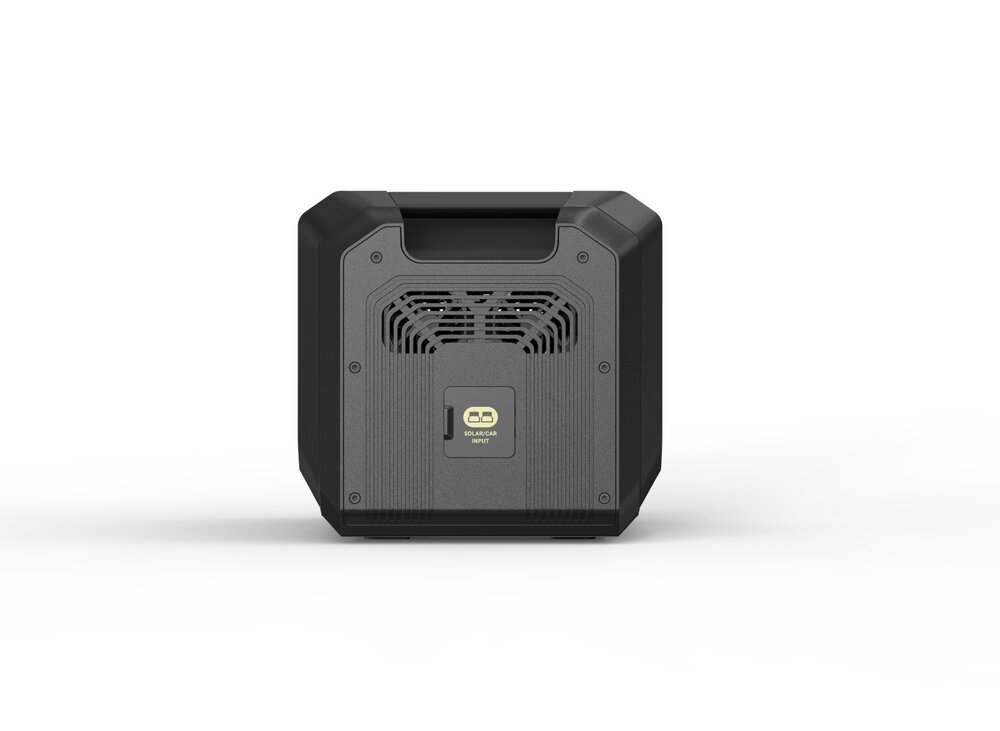

DC Inlet: DC Anderson Input Port x 1 DC Charging (12V-150V, MPPT:18V140V, 15A Max)
Recharge Times (0-100%)
AC Input: 3.5 hours when linked to BASE 2.5 host
Solar / DC Input: 1 hour
Vehicle Charger (fast): 4.5 hours
Vehicle Charger (slow): 20 hours
General
IP Rating: 21
APP Compatible: When linked to BASE 2.5 host
Expandable Capacity:Yes (up to 15 x Sherpa BASE 2.0-EB link with the BASE 2.5)
Warranty: 5-year Standard Warranty
Dimensions & Weight
Length(L): 460mm
Width(W): 270mm
Height(H): 265mm
Weight: 19Kg
