Product Description

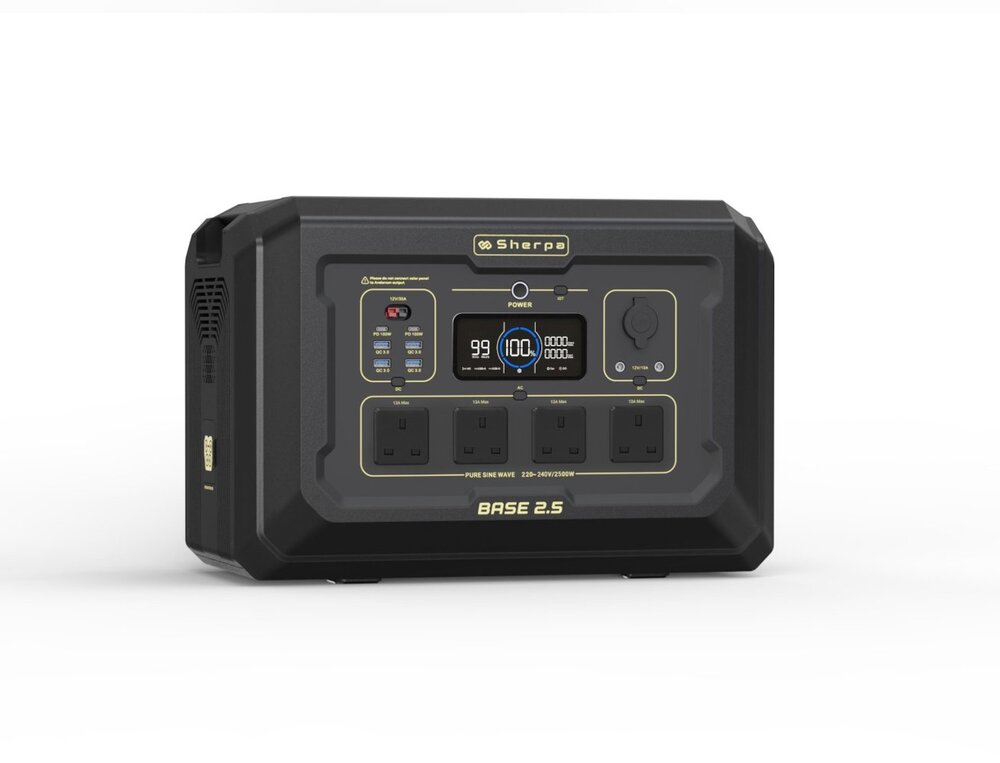

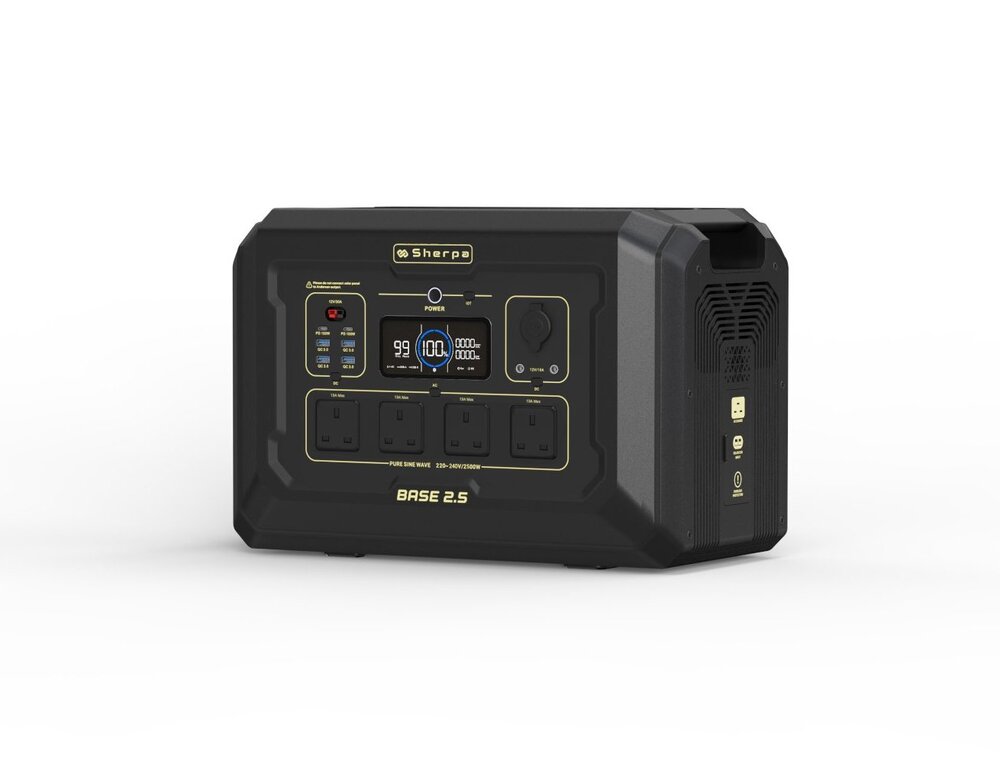

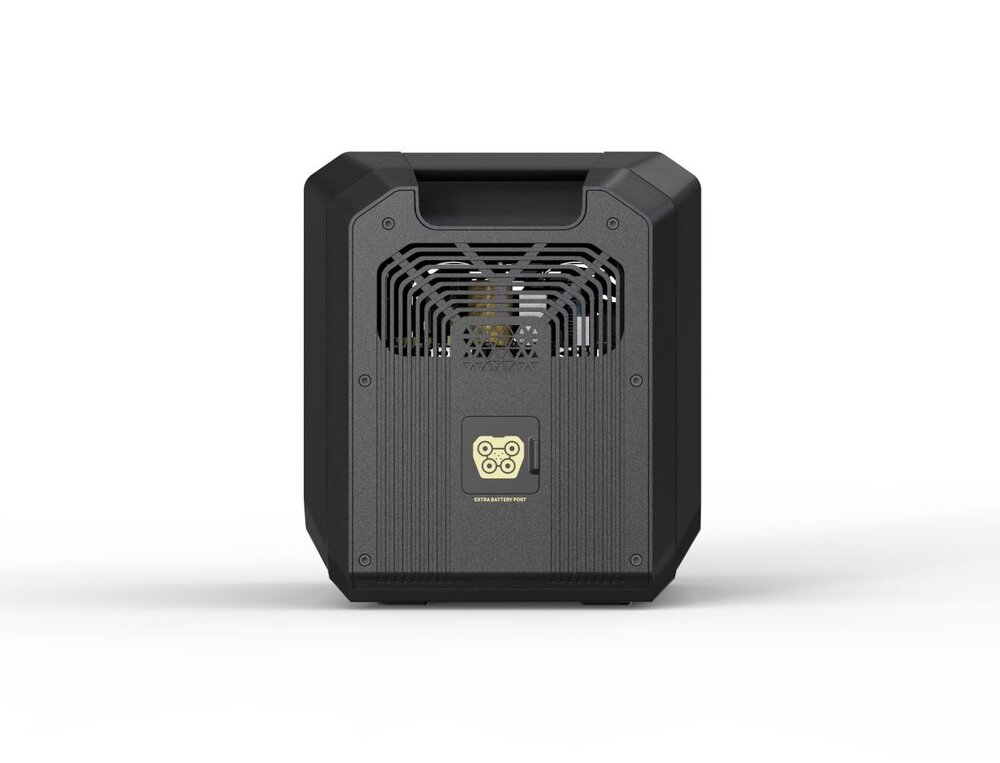

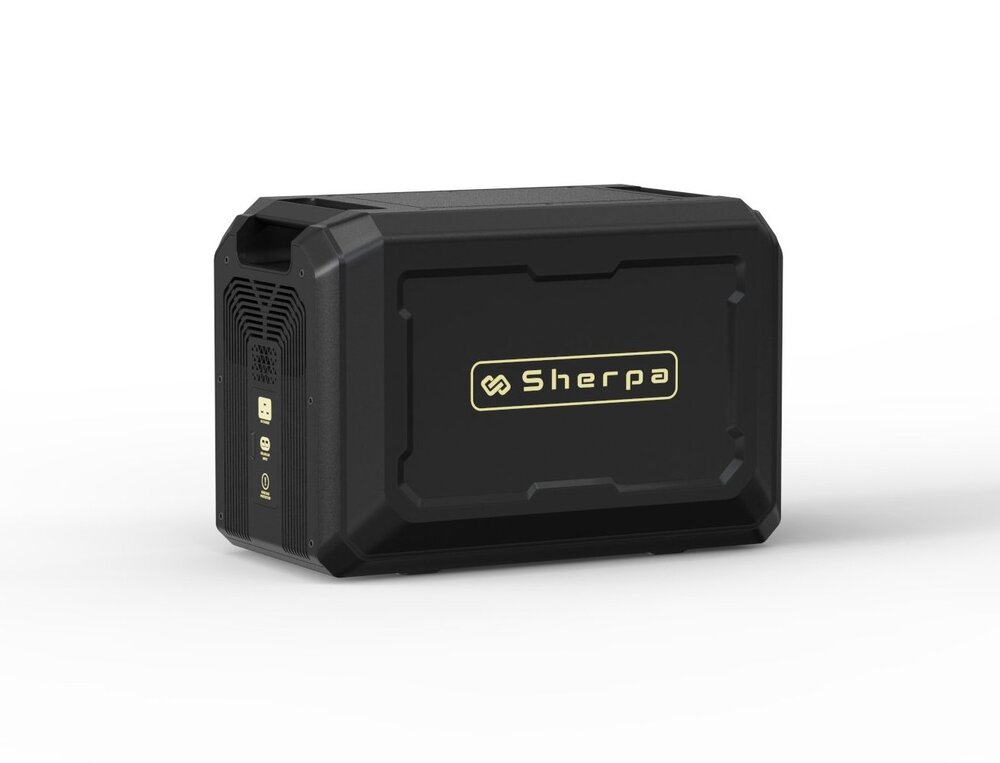

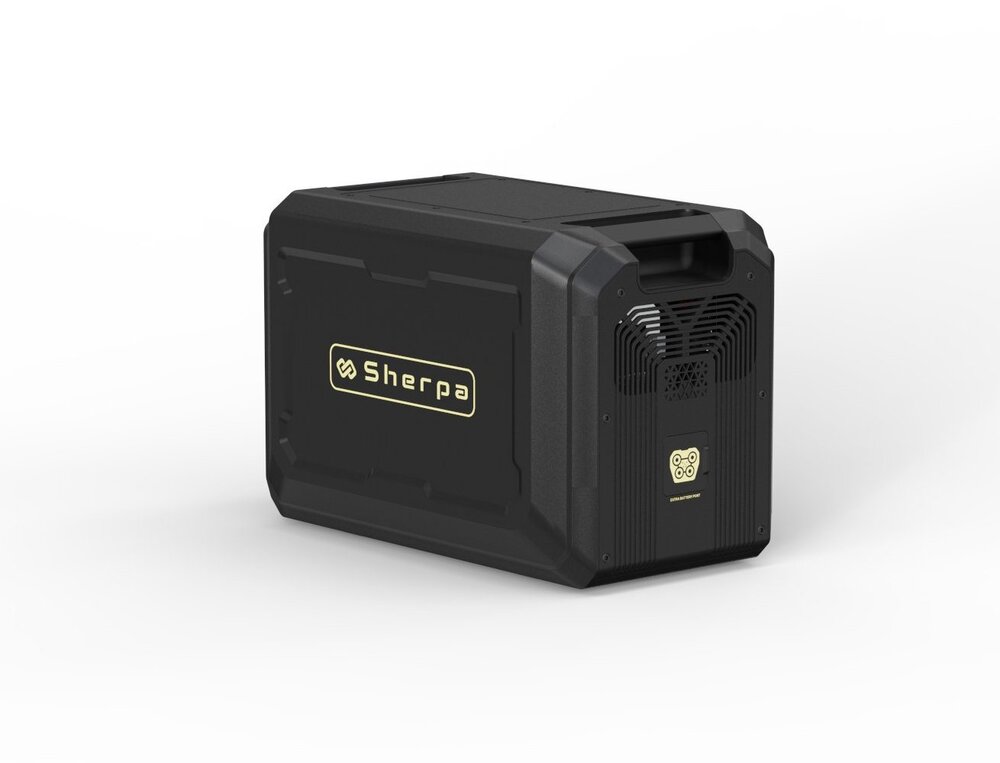

Sherpa BASE 2.5 Portable Power Station 2500W The Sherpa BASE 2.5 is user friendly and a lightweight portable power station option. The BASE 2.5 is built both for recreational and home backup use. The easy link up system allows you to add up to 15 extra battery units for serious energy storage. The Sherpa BASE 2.5 is equipped with a pure sine wave inverter, capable of powering appliances and devices in situations where there is no access to mains power. It has an Uninterruptible Power Supply function, allowing your appliances to use grid power via the unit and switch over to battery power in 8-20 milliseconds in case of a power cut.
The Sherpa comes with 4 x AC 220V-240V Sockets, allowing you to charge multiple devices at the same time. The BASE 2.5 has a standard 5-year Warranty for peace of mind and 10-plus years lifespan
What's in the Box
1 x BASE 2.5
1 x AC Charging Cable
1 x Car Charging Cable
1 x MC4 Solar Charging Cable (LSMC4-Anderson)
1 x Anderson to Anderson Cable
1 x Anderson to 7909 Cable
1 x Anderson to Car Charge Cable
User Manual
Specifications
Battery Info
Capacity: 2048 Wh (Depth Of Discharge 85%)
Chemistry: LiFePO4 (Lithium Iron Phosphate)
Life Cycles: 3,500+ Cycles to 80% Original Capacity
Shelf-life: Discharge the battery to 30% every three months and recharge it to 60%
Management System: MPPT Controller, BMS
Protection: Over-voltage, Low-voltage, Overheat, Overload, Short-circuit, Self-recovery
Discharging Temperature:-20°C~45°C/-4°F~113°F
Charging Temperature: 0°C~45°C/32°F~113°F
Storage Temperature: 20-30°C/68°F~86°F
AC Output
Output Power: 2500W
Surge: 5400W for <1s
Outlets: AC Sockets: 4 × 220V-240V/50Hz
DC Output
Outlets: USB-A Port: 4 x (5V,9V,12V, Max 18W) Shared
USB-C Port: 2 x (5V,9V,12V,20V, Max 18W and 100W) Shared
DC 5525 Output Port: 2 x (12V-5A)
DC Anderson Output Port: 1 x DC 12V-30A
Aux Car Port: 1 x DC 12V-10A
AC Input
AC Input Power: 1600W Max
AC Inlet: 1 x AC 220V-240V
DC Input DC Input Power: 2100W Max
DC Inlet: DC Anderson Input Port x 1 DC Charging (12V-150V, MPPT:18V140V, 15A Max)
Recharge Times (0-100%)
AC Input: 1.5 hours
Solar / DC Input: 1 hour
Vehicle Charger (fast): 4.5 hours
Vehicle Charger (slow): 20 hours
General IP Rating: 21
UPS Function: 8-20ms
APP Compatible: Bluetooth/Wi-Fi
Expandable Capacity: Yes (with up to 15 x Sherpa BASE 2.0-EB > 32,768Wh)
Warranty: 5-year Standard Warranty
Inverter: Pure Sine Wave
Dimensions & Weight
Length(L): 460mm
Width(W): 270mm
Height(H): 305mm
Weight: 22KG
