Product Description

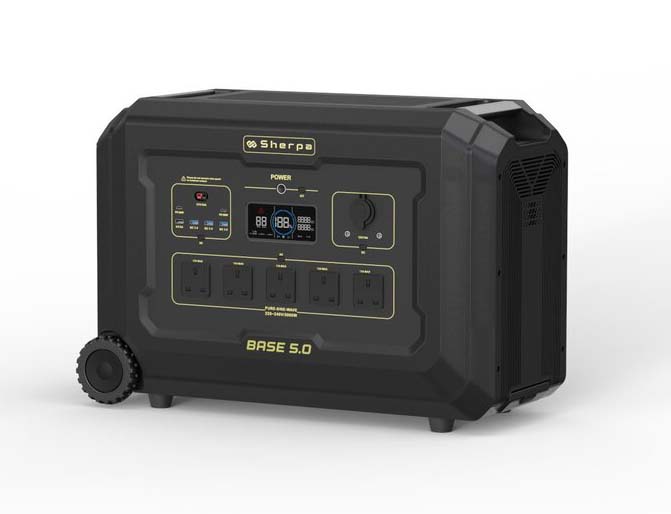

Sherpa BASE 5.0 Portable Power Station 5000W The Sherpa BASE 5.0 is user friendly and a lightweight portable power station option. The BASE 5.0 is built both for off-grid and home backup use. The easy link up system allows you to add up to 15 extra battery units for serious energy storage. The Sherpa BASE 5.0 is equipped with a 5kW pure sine wave inverter, capable of powering appliances and devices in situations where there is no access to mains power. It has an Uninterruptible Power Supply function, allowing your appliances to use grid power via the unit and switch over to battery power in 8-20 milliseconds in case of a power cut. The BASE 5.0 Battery Management System (BMS) has multiple in-built protection features, to prevent overheating, overload, and short-circuit.
What's in the Box
1 x BASE 5.0
1 x AC Charging Cable
1 x Car Charging Cable
1 x MC4 Solar Charging Cable (LSMC4-Anderson)
1 x Anderson to Anderson Cable
1 x Anderson to 7909 Cable
1 x Anderson to Car Charge Cable
User Manual
Specifications
Sherpa BASE 5.0 Portable Power Station 5000W
Battery Info
Capacity: 5040 Wh (Depth Of Discharge 85%)
Chemistry: LiFePO4 (Lithium Iron Phosphate)
Life Cycles: 3,500+ Cycles to 80% Original Capacity
Shelf-life: Discharge the battery to 30% every three months and rechargeit to 60%
Management System: MPPT Controller, BMS
Protection: Over-voltage, Low-voltage, Overheat, Overload, Short-circuit, Self-recovery
Discharging Temperature: -20°C~45°C/-4°F~113°F
Charging Temperature: 0°C~45°C/32°F~113°F
Storage Temperature: 20-30°C/68°F~86°F
AC Output
AC Output Output Power: 5000W
Surge: 7000W for <1s
Outlets: AC Sockets: 5 × 220V-240V/50Hz
DC Output
Outlets:
USB-A Port: 4 x (5V, 9V, 12V, Max 18W) Shared
USB-C Port: 2 x (5V, 9V, 12V, 20V, Max 18W and 100W) Shared
DC 5525 Output Port: 2 x (12V-5A)
DC Anderson Output Port: 1 x DC 12V-30A
Aux Car Port: 1 x DC 12V-10A
AC Input
AC Input Power: 2500W Max
AC Inlet: 1 x AC 220V-240V
DC Input
DC Input Power: 2100W Max
DC Inlet: DC Anderson Input Port x 1 DC Charging (12V-150V, MPPT:18V140V, 15A Max)
Recharge Times (0-100%)
AC Input: 2.3 hours
Solar / DC Input: 2.4 hours
Vehicle Charger (fast): 10 hours
General IP Rating: 21
UPS Function: 8-20ms
APP Compatible: Bluetooth/Wi-Fi
Expandable Capacity:Yes (with up to 15 x Sherpa BASE 5.0-EB > 80,640Wh)
Warranty: 5 Year Standard Warranty
Inverter: Pure Sine Wave
Dimensions & Weight
Length(L): 642mm
Width(W): 305mm
Height(H): 438mm
Weight: 51KG
Applications
Leisure and Hobby (motorhome, glamping, off-grid events, luxury marine)
Professional Use (onboard power solution for commercial vehicles, DIY, skilled trades, film production, contractors, medical equipment)
Home Back-up Solution (fridge, freezer, TV, devices, Wi-Fi, kettle, microwave, washing machine, air fryer, oven)
Off-Grid Living (Hybrid renewable charging at high rates, high storage plug-and-play solution and excellent output power)
