Product Description

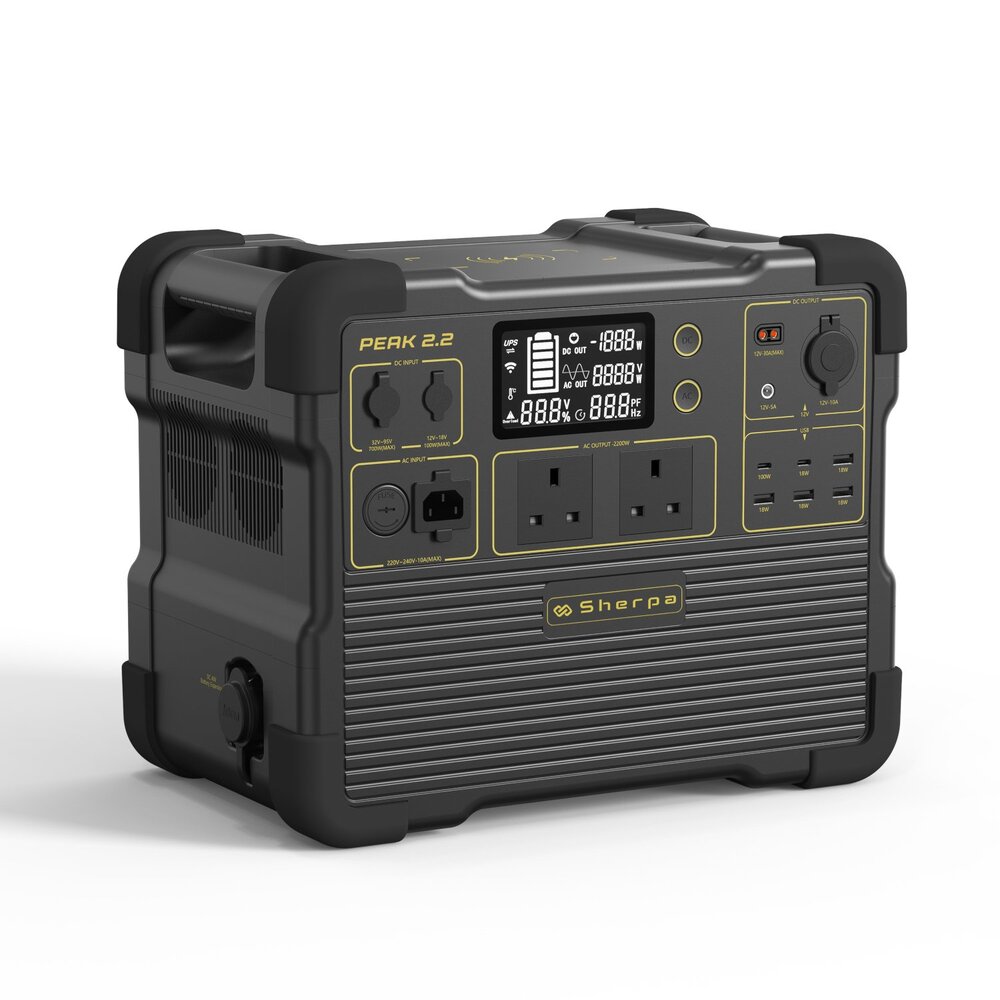

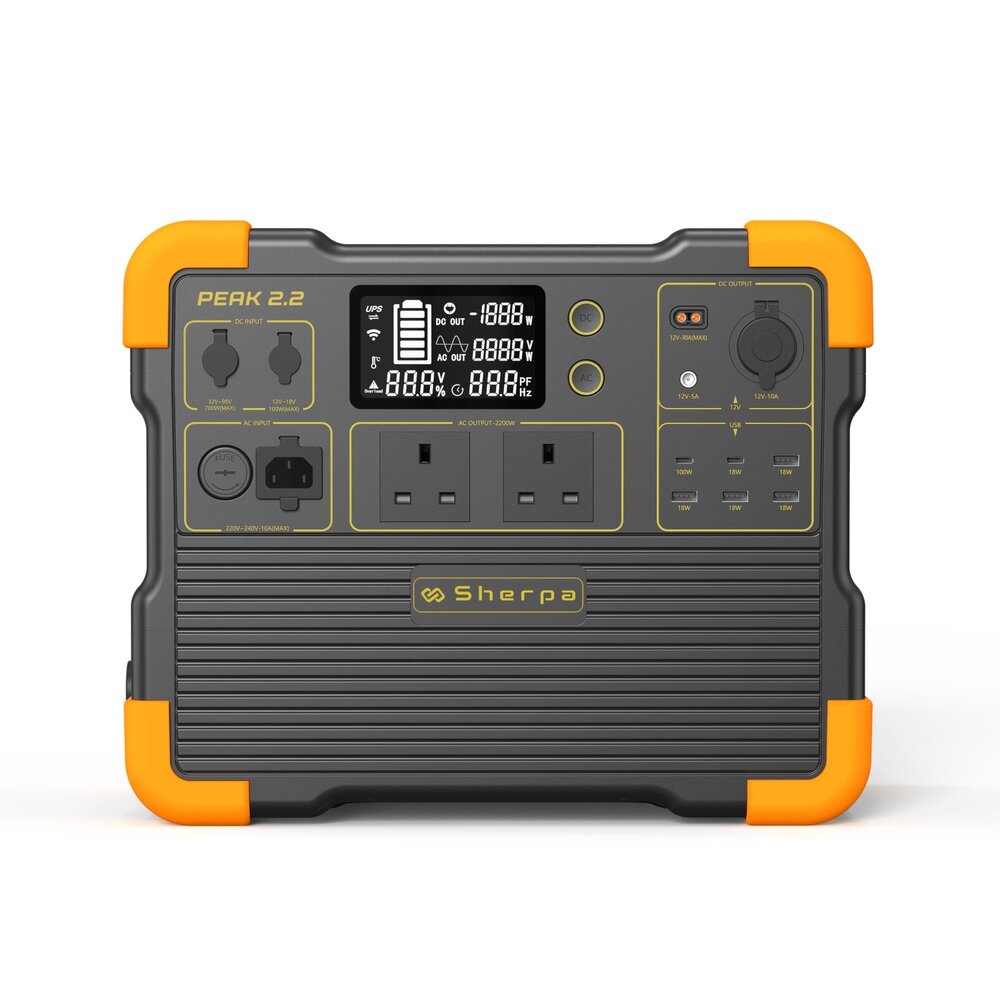

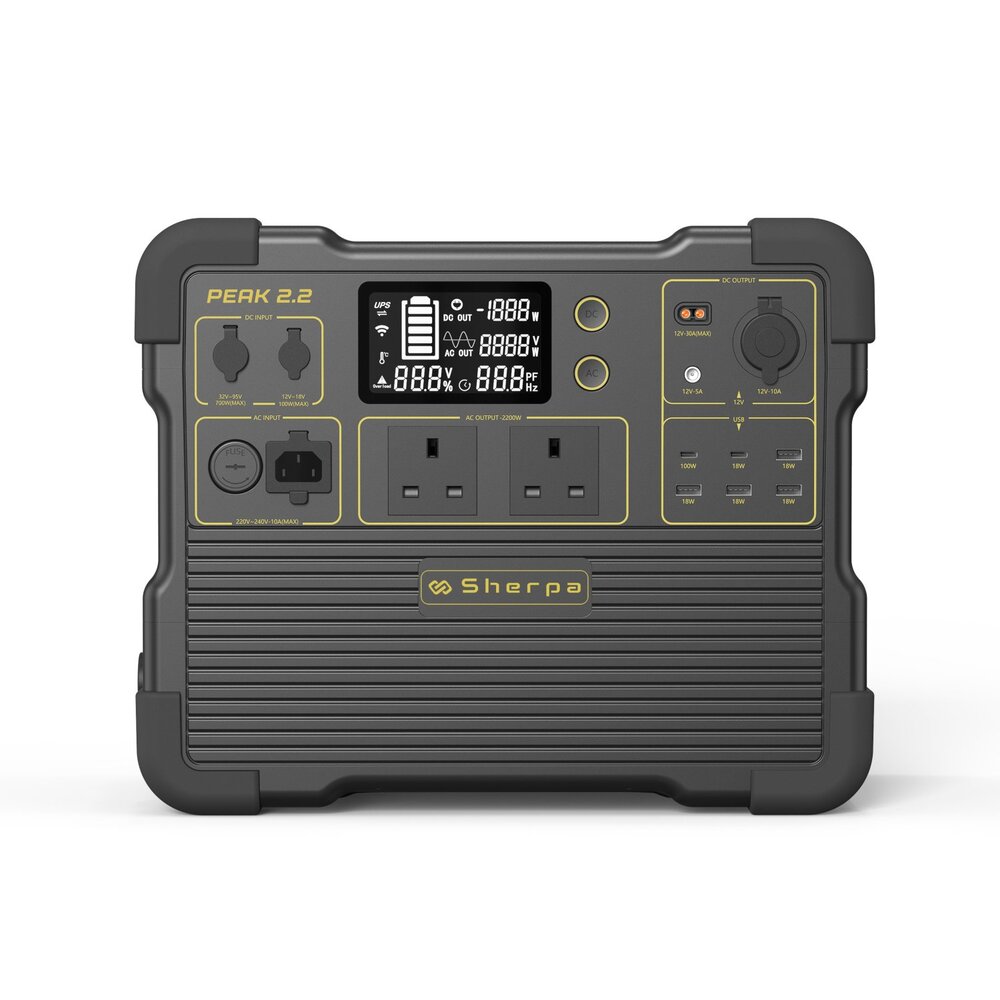

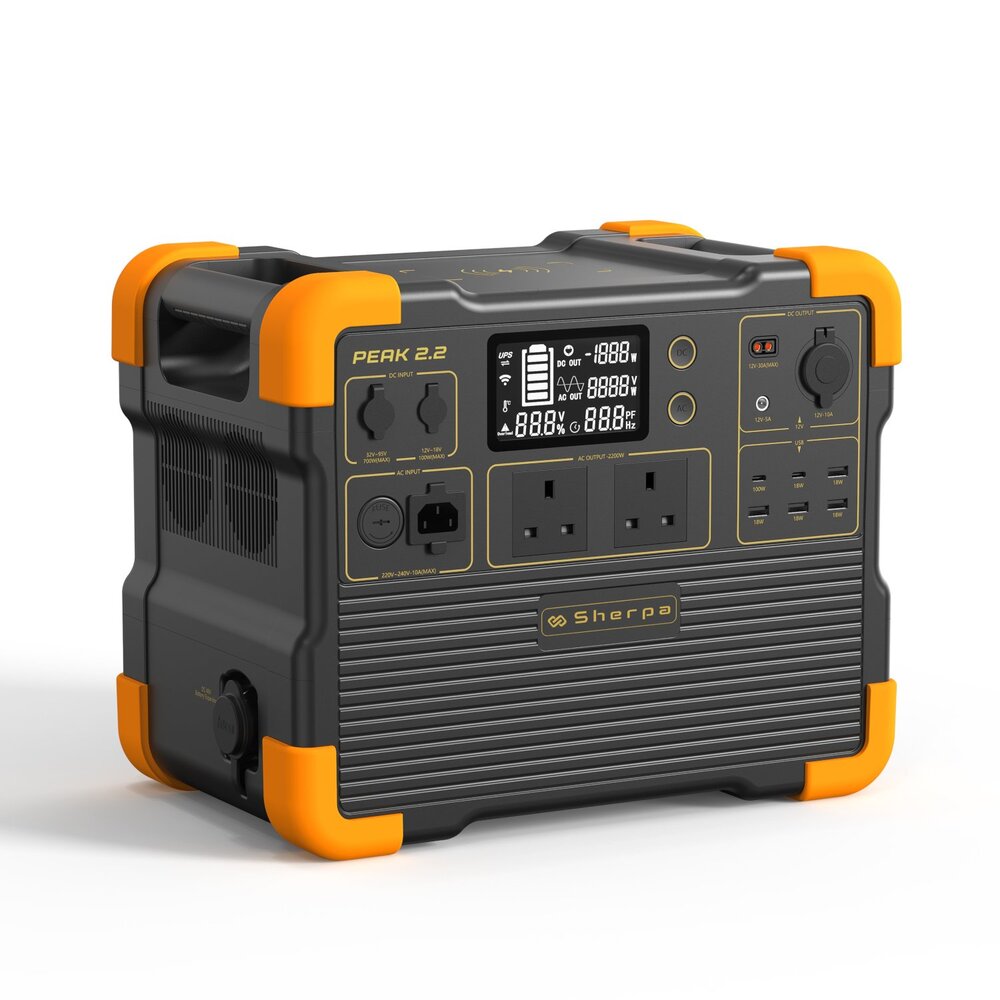

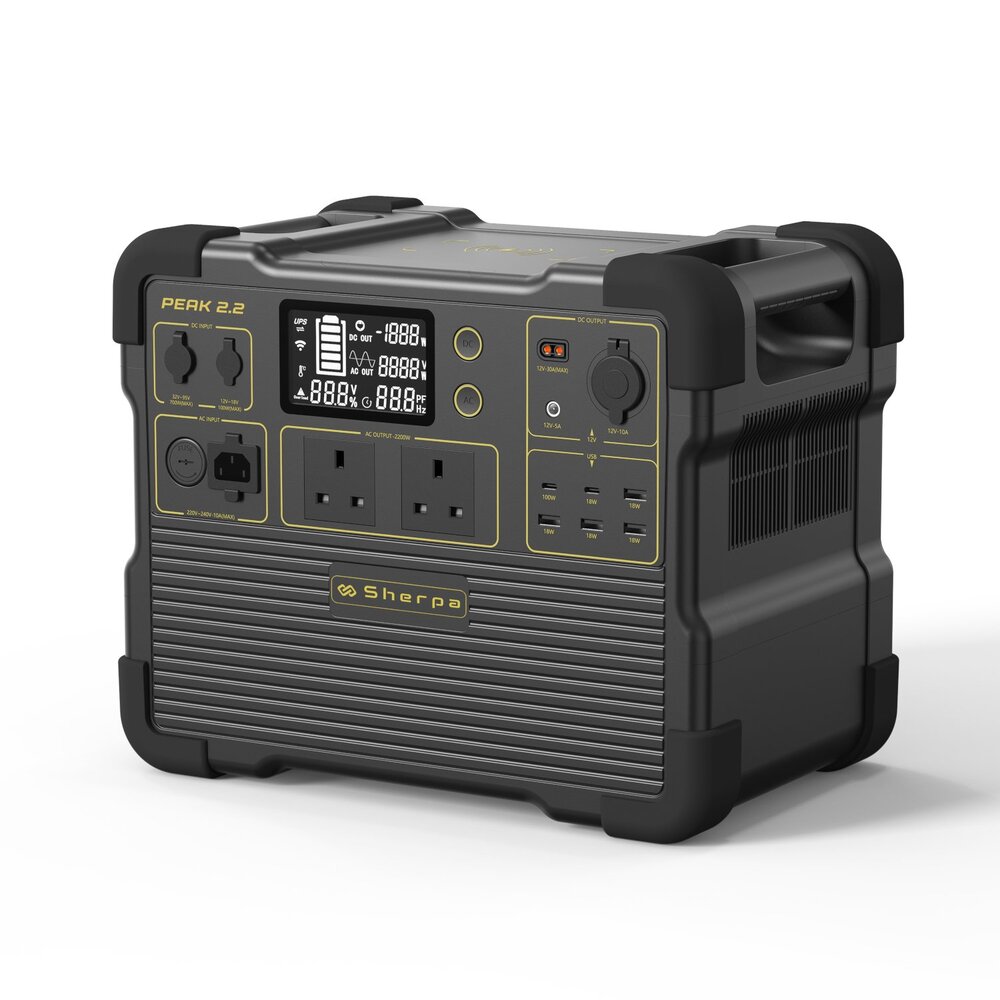

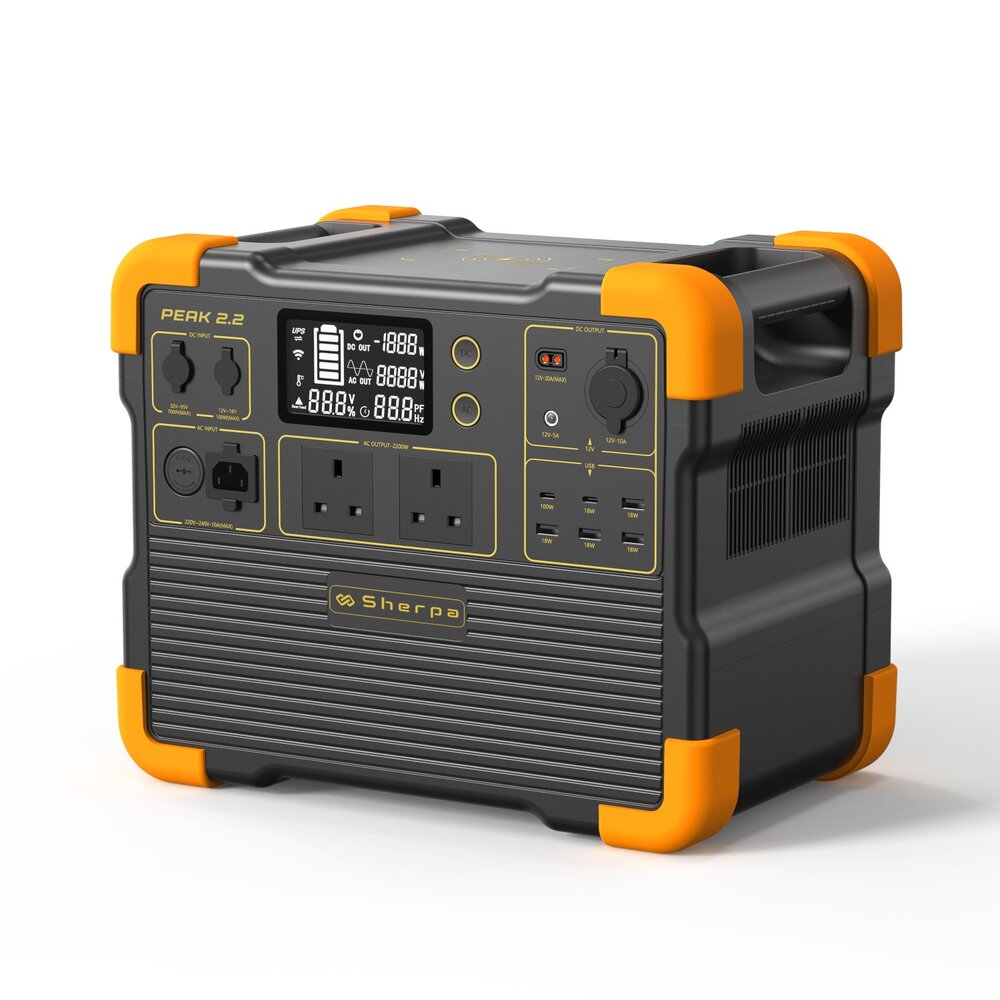

Sherpa PEAK 2.2 Portable Power Station 2200W The Sherpa PEAK 2.2 is a user-friendly power station which offer clean, smooth power. The Sherpa PEAK 2.2 features an LCD screen that provides real-time information about battery level, power input/ output and charging status. The sturdy handle provides comfortable portability, while the rugged exterior and solid construction protect the unit from certain impacts and scratches. It also features wireless charging and all output and input ports on the front panel for easy access. Sherpa PEAK 2.2 Portable Power Station 2200W even features pure sine wave inverter
Applications
Leisure and Hobby (campervan, camping, glamping, fishing, off-grid events, photography, marine) Professional Use (onboard power solution for commercial vehicles, DIY, skilled trades, film industry, contractors, medical equipment)
Home Back-up Solution (fridge, freezer, TV, devices, Wi-Fi, microwave, washing machine, air fryer
Whats in the box
1 x PEAK 2.2
1 x AC Charging Cable
1 x Car Charging Cable
1 x MC4 Solar Charging Cable (LSMC4-5GX16)
1 x 12V Alligator Clips
8 x Spare Corner Protector
User Manual
Specifications
Battery Info
Capacity: 1536 Wh (Depth Of Discharge 85%)
Chemistry: LiFePO4 (Lithium Iron Phosphate)
Life Cycles: 3,500+ Cycles to 80% Original Capacity
Shelf-life: Discharge the battery to 30% every three months and recharge
it to 60%
Management
System:
MPPT Controller, BMS
Protection:
Over-voltage, Low-voltage, Overheat, Overload, Short-circuit,
Self-recovery
Discharging
Temperature:
-20°C~45°C/-4°F~113°F
Charging
Temperature:
0°C~45°C/32°F~113°F
Storage
Temperature:
20-30°C/68°F~86°F
AC Output Output
Power: 2200W
Surge: 4400W for <1s
Outlets: AC Sockets: 1 × 220V-240V/50Hz
DC Output
Outlets: USB-A Port: 4 x (5V,9V,12V, Max 18W) Shared
USB-C Port: 2 x (5V,9V,12V,20V, Max 18W and 100W) Shared
DC 5525 Output Port: 1 x (12V-5A)
DC XT60 Output Port: 1 x DC 12V-30A
Wireless Charging Pad: 1 x 15W Max
Aux Car Port: 1 x DC 12V-10A
AC Input
AC Input Power: 1400W Max
AC Inlet: 1 x AC 220V-240V
DC Input
DC Input Power: 700W Max
DC Inlet: DC GX16MF Input Port x 1 DC Charging (32V-95V, 700W Max, 15A Max)
DC 5521 Input Port x 1 DC Charging (12V-18V, 100W Max, 7A Max)
Recharge Times (0-100%)
AC Input: 1.8 hours
Solar / DC Input: 2.5 hours
Vehicle Charger (fast): 3.5 hours
Vehicle Charger (slow): 18 hours
General
IP Rating: 20
UPS Function: 8-20ms
APP Compatible: Bluetooth/Wi-Fi
Expandable Capacity: Yes (with up to 2 x Sherpa Peak 3.0-EB > 7680Wh)
Warranty: 5-year Standard Warranty
Inverter: Pure Sine Wave
Other Features: Shockproof
Dimensions & Weight
Length(L): 377mm
Width(W): 237mm
Height(H): 305mm
Weight: 18KG
